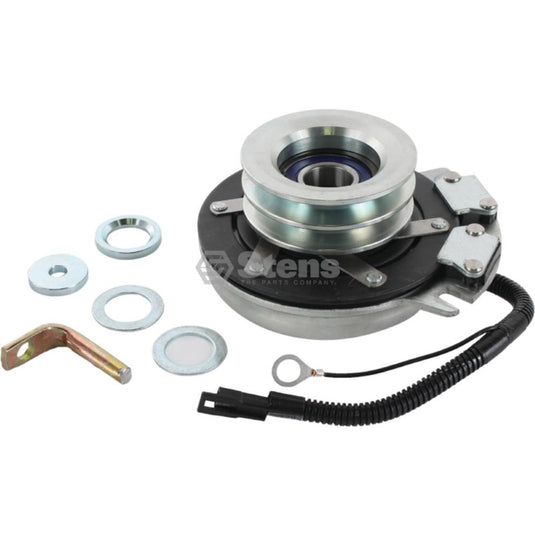

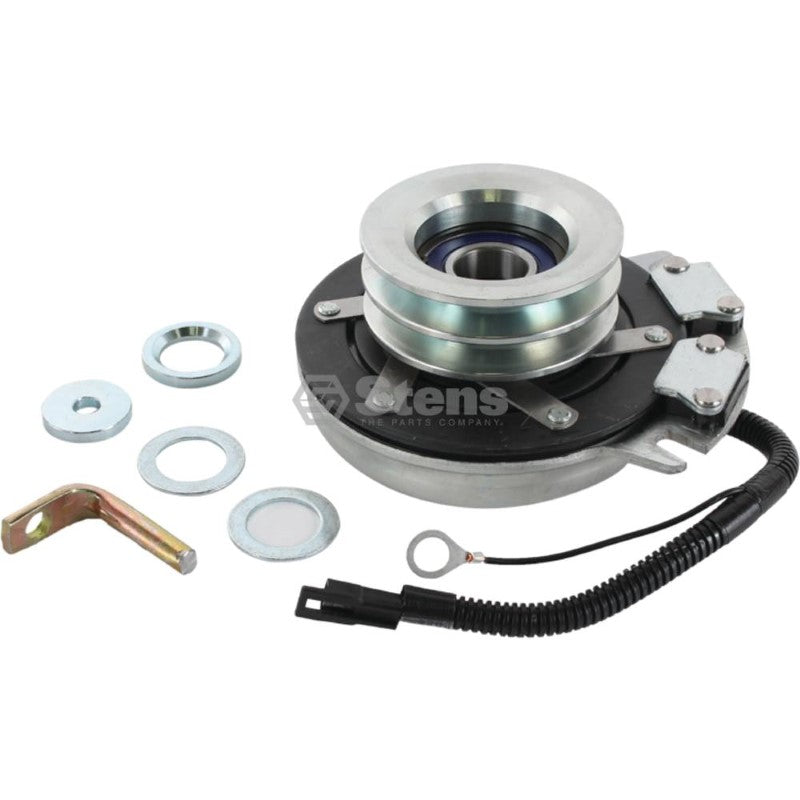

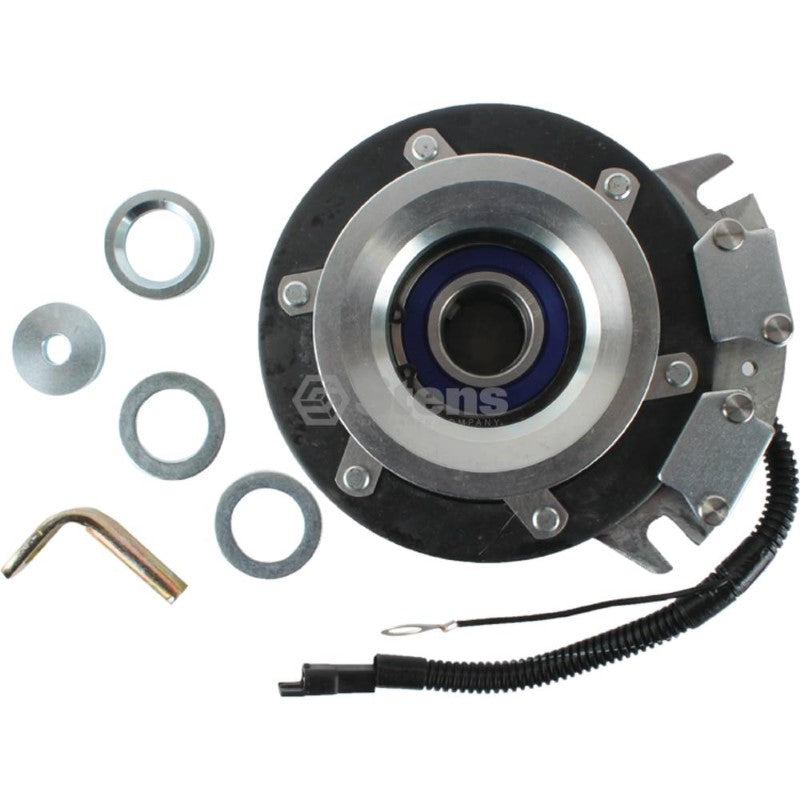

Xtreme PTO Clutch
Troy-Bilt 174401P
REPLACES OEM
Troy-Bilt 1744401, 1744401P, GW-1744401, GW-1744401P, GW-B1744401, MTD-1744401, MTD-1744401P
FITS MODELS
Troy-Bilt 5118HR, 1800, 13060, 13062, 13074 and 13076
SPECS
Does not fit all applications - Verify part number by referring to model specifications
High Temperature Bearing Upgrade
High Torque Cool Coil Upgrade

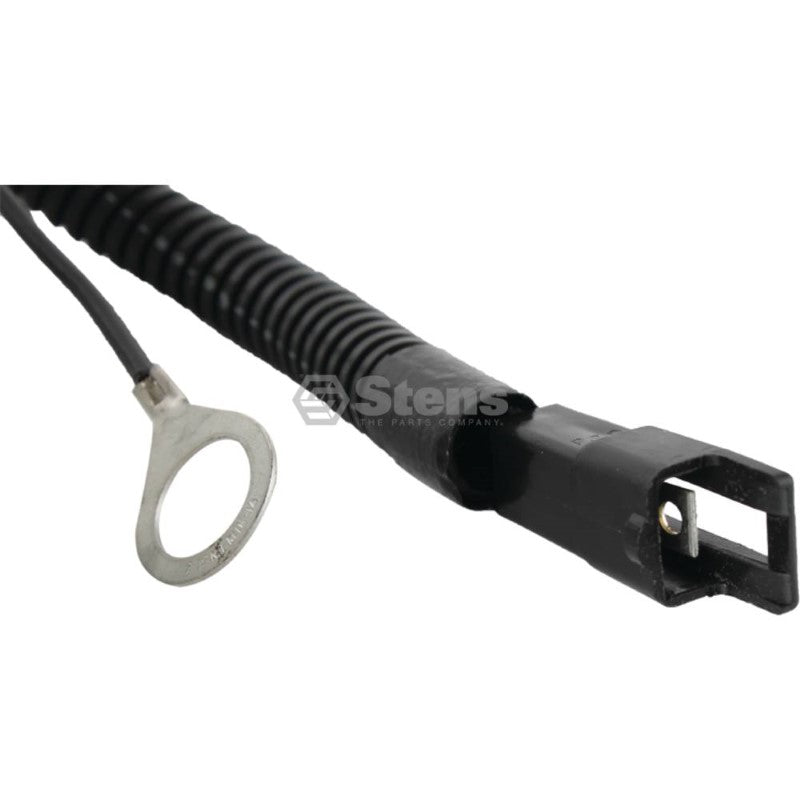

Integrated Water Tight Wire Harness
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width: Double A
ID: 1 1/8"
Pulley Diameter: 4 1/8"
Rotation Direction: Counter Clockwise
Xtreme PTO Clutch
Troy-Bilt 174401P
REPLACES OEM
Troy-Bilt 1744401, 1744401P, GW-1744401, GW-1744401P, GW-B1744401, MTD-1744401, MTD-1744401P
FITS MODELS
Troy-Bilt 5118HR, 1800, 13060, 13062, 13074 and 13076
SPECS
Does not fit all applications - Verify part number by referring to model specifications
High Temperature Bearing Upgrade
High Torque Cool Coil Upgrade
Integrated Water Tight Wire Harness
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width: Double A
ID: 1 1/8"
Pulley Diameter: 4 1/8"
Rotation Direction: Counter Clockwise
Compatibility Confirmation
Ensure a seamless fit and top-notch performance by taking an extra minute to cross-verify your part selection with your equipment manual and serial number. This crucial step helps avoid the inconvenience and cost of returns. If you need assistance in this process, please do not hesitate to contact us. Our team will be more than happy to help you find the correct part.
