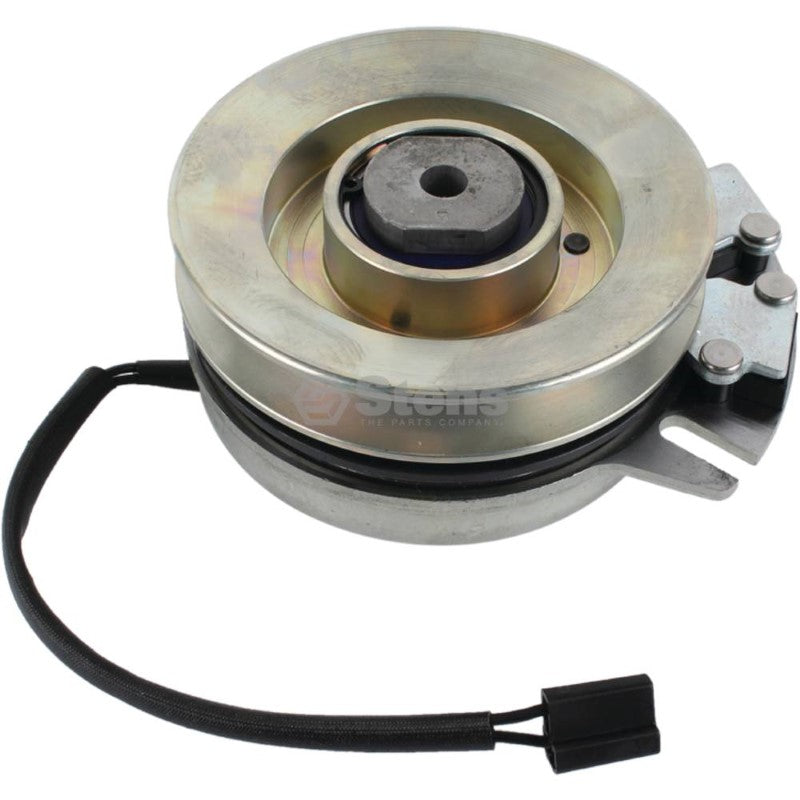

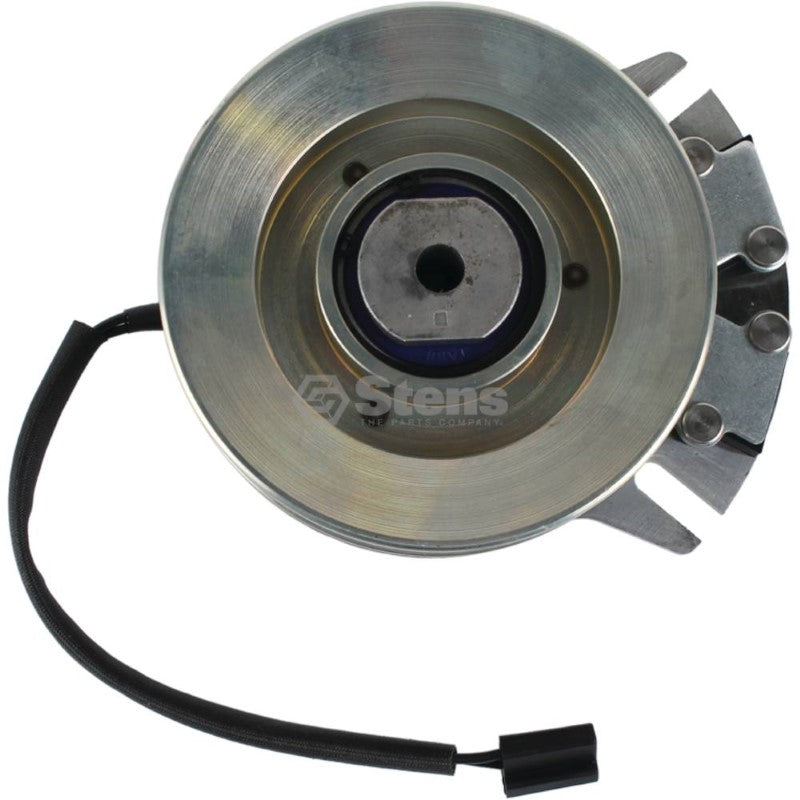

Xtreme PTO Clutch
Toro 117-7468
REPLACES OEM
Exmark 117-7468
Toro 117-7468
FITS MODELS
Exmark QT22KA421, Serial No. 920,000 and higher, QTE651KA421, Serial No. 313,000 and higher, and QTS691KA422, Serial No. 313,000 and higher
Toro TimeCutter MX4260, Serial No. 312000001-312999999, TimeCutter SS 3200S, Serial No. 312000001-312999999, TimeCutter Z4200, Serial No. 310000001-310999999, TimeCutter Z4202, Serial No. 310000001-310999999, TimeCutter Z4235 and Z4235-SS, Serial No. 310000001-312999999, TimeCutter ZS 3200, Serial No. 311000001-312999999, TimeCutter ZS4200, SS4200S and SS4200TF, Serial No. 311000001-312999999, XLS 380, Serial No. 311000001-312999999, and XLS 420T, Serial No. 311000001-312999999
SPECS
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model specifications
High Temperature Bearing Upgrade

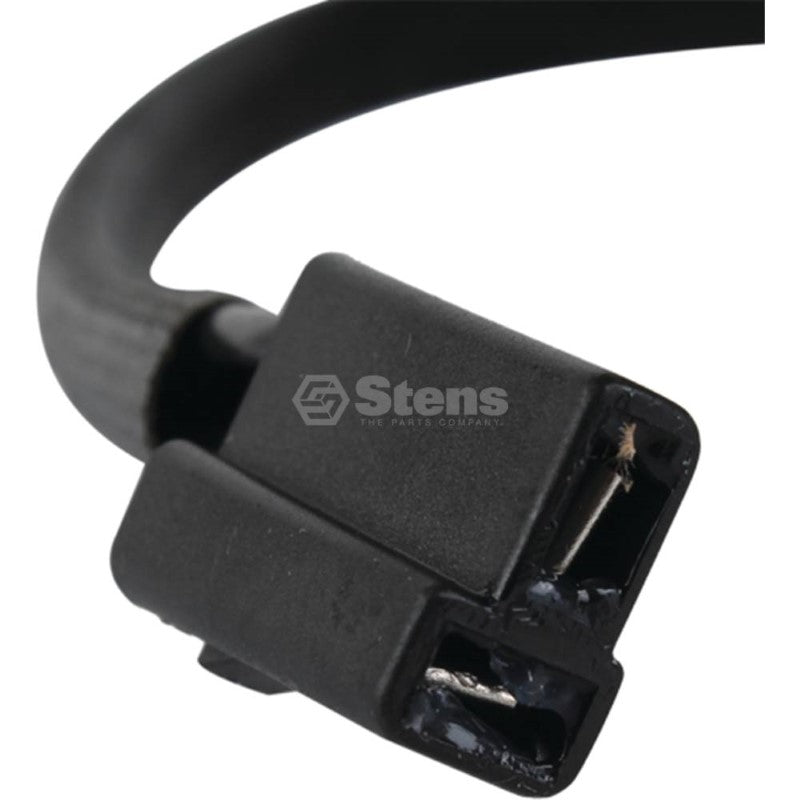

Integrated Water Tight Wire Harness
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width: 1/2" or 5/8"
ID: 1"
Pulley Diameter: 5 3/8"
Rotation Direction: Counter Clockwise
Make Sure It Fits!
Double-check your equipment manual and model number to be sure this part is the right one. It only takes a minute and can save you the hassle of returns. Not sure? No problem! Reach out to us — we’re happy to help you find the right part.
