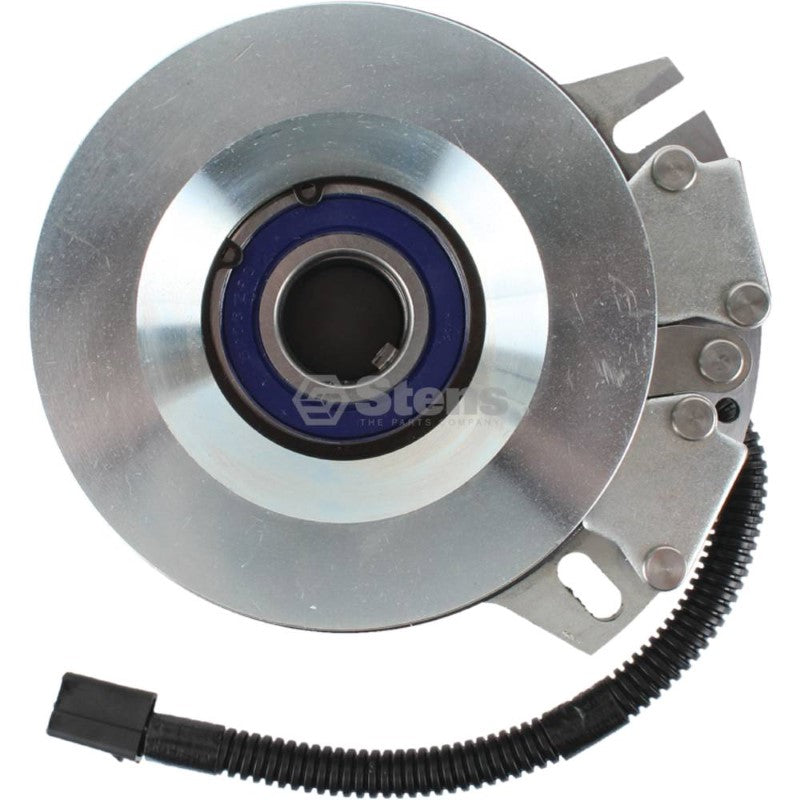

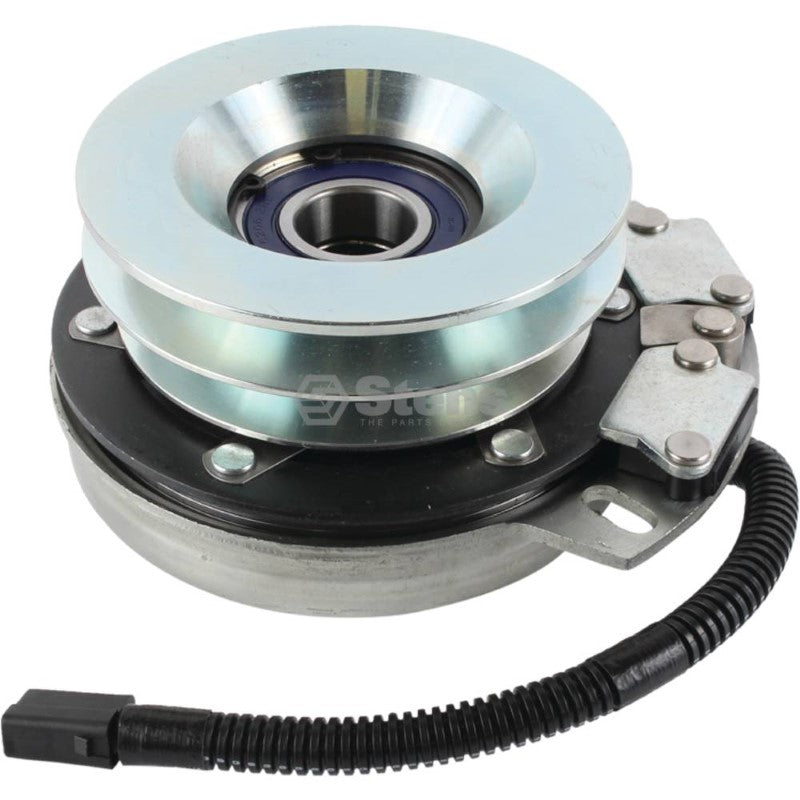

Xtreme PTO Clutch
Toro 104-2472
REPLACES OEM
Toro 104-2472
Warner 5219-9
FITS MODELS
Toro 315-8, 2002-2004, Serial No. 220000001-230999999 and GT Classic, 2005-2007, Serial No. 250000001-270999999
SPECS
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model specifications
High Temperature Bearing Upgrade
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Triple Wire Protection

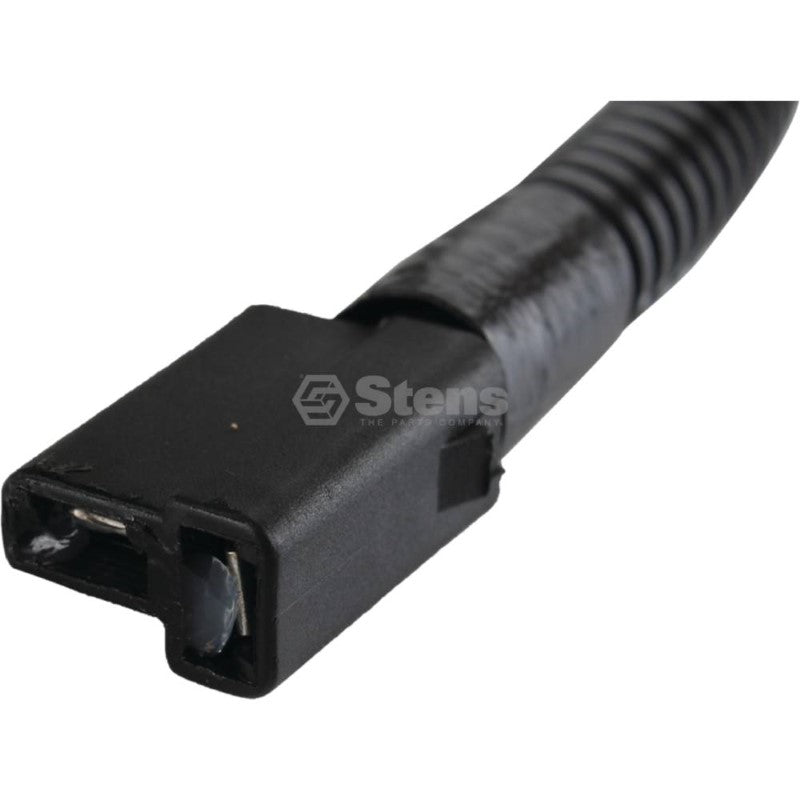

Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight, Impact resistant Wire Harness
Belt Width: Double A/B
ID: 1 1/8"
Pulley Diameter: 5 3/16"
Rotation Direction: Clockwise
Make Sure It Fits!
Double-check your equipment manual and model number to be sure this part is the right one. It only takes a minute and can save you the hassle of returns. Not sure? No problem! Reach out to us — we’re happy to help you find the right part.
