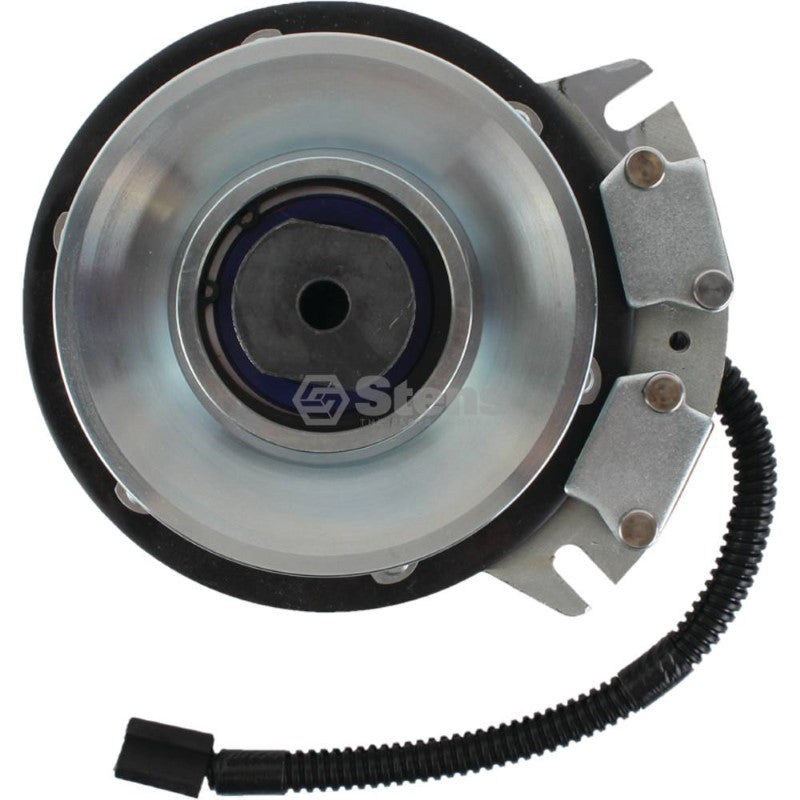

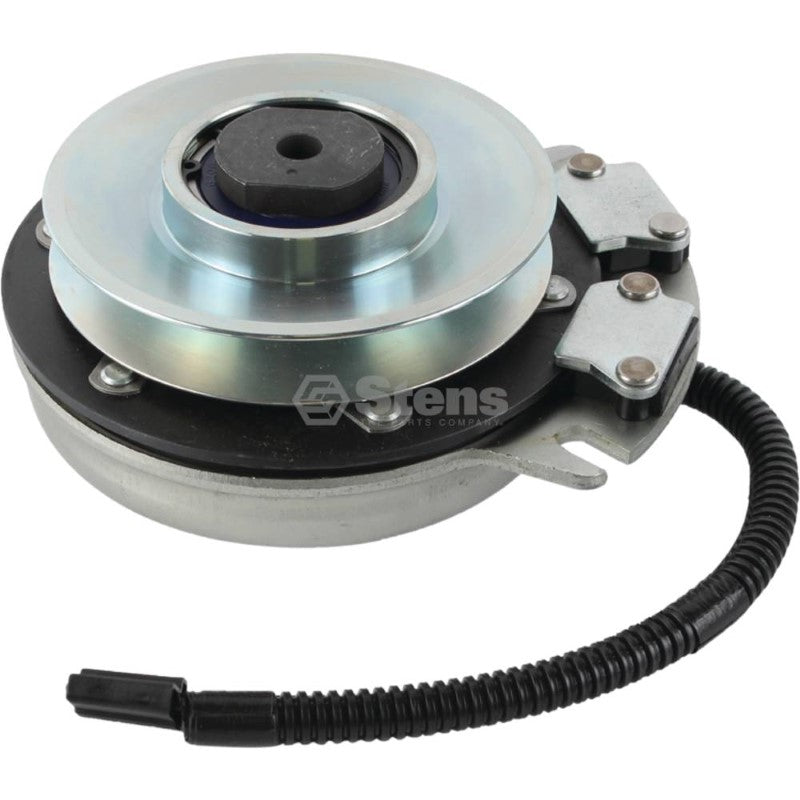

Xtreme PTO Clutch
Gravely 09225400
REPLACES OEM
Ariens 092254, 09225400, 592003, 59200300
AYP 128711, 539128711
Country Clipper E-6247
Craftsman 128711, 539128711
Dixon 128711, 539128711, 60473, 60499, 61516
Electrolux 128711, 539128711
Exmark 94-6136
Gravely 092026, 092080, 092254, 09225400, 592003, 59200300
Husqvarna 128711, 539128711
Kees 128711, 539128711
Massey Ferguson 128711, 539128711
McCulloch 128711, 539128711
Poulan 128711, 539128711
Toro 94-6136
Warner 5218-10, 5218-223, 5218-224
FITS MODELS
Ariens Hydro Pro 300 and ZTR PM 200
Country Clipper SR1010, SR1015 and SR1020 Charger models; Jazee SR205 and SR355, 2007-2008, Jazee SR210 and SR360, 2009, Jazee SR215 and SR365, 2010, Jazee SR220 and SR370, 2011, Boss SR1200, 2006 and Zeton
Dixon ZTR6023, ZTR7025 and ZTR7225
Gravely PM and Pro 300 series
SPECS
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model specifications
High Temperature Bearing Upgrade
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch

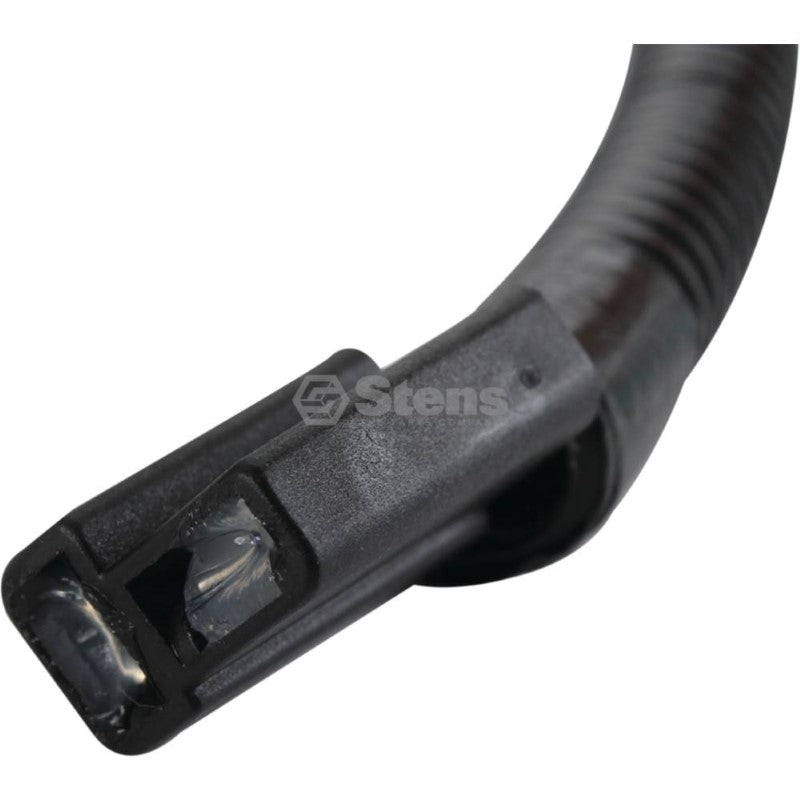

Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
Belt Width: 1/2" or 5/8"
ID: 1 1/8"
Pulley Diameter: 5 3/8"
Rotation Direction: Counter Clockwise
Make Sure It Fits!
Double-check your equipment manual and model number to be sure this part is the right one. It only takes a minute and can save you the hassle of returns. Not sure? No problem! Reach out to us — we’re happy to help you find the right part.
