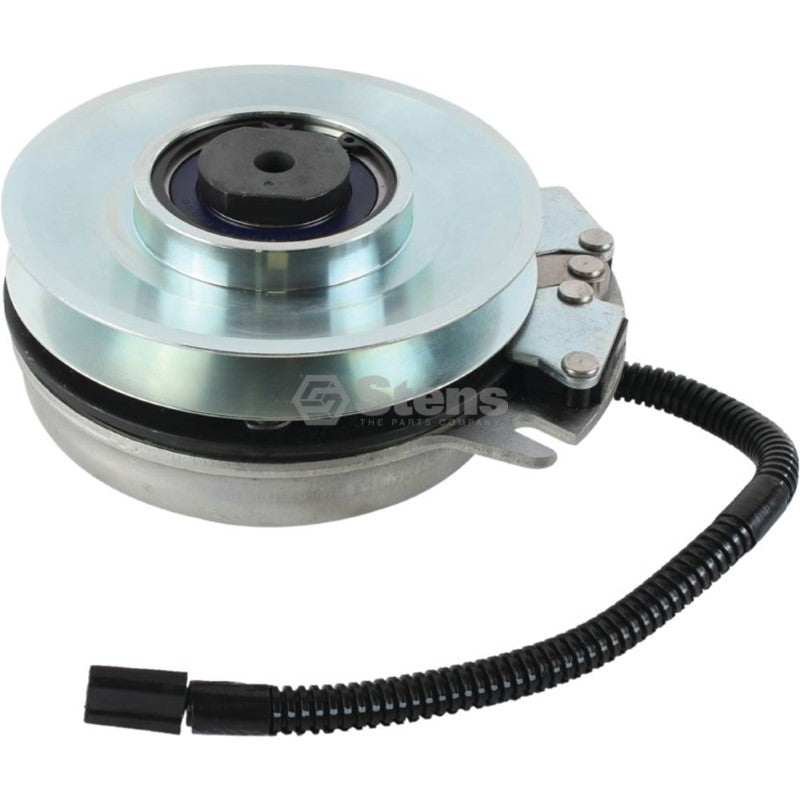

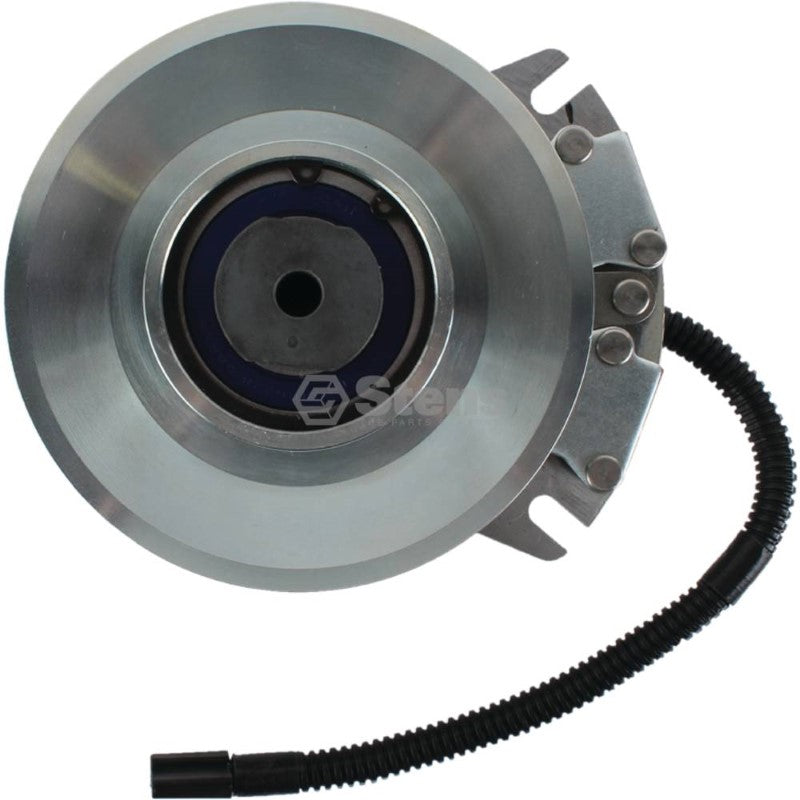

Xtreme PTO Clutch
Gravely 00462500
REPLACES OEM
Ariens 00462500, 462500
Craftsman 00462500
Gravely 00462500, 462500
Great Dane 00462500
Warner 5218-142
FITS MODELS
Ariens PM144Z, PM272H, PM252H, PM260H and PM260Z
Gravely PM and Pro Master series
SPECS
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model specifications
Heavy Duty "FatBoy Series" Upgrade
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch

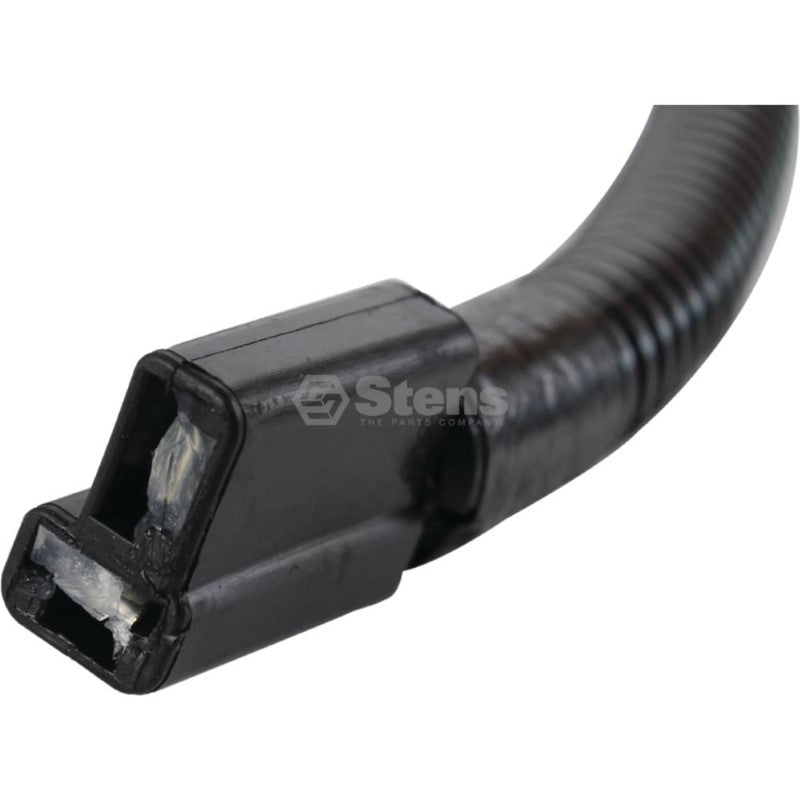

Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
Belt Width: 1/2" or 5/8"
ID: 1 1/8"
Pulley Diameter: 6 5/16"
Rotation Direction: Counter Clockwise
Make Sure It Fits!
Double-check your equipment manual and model number to be sure this part is the right one. It only takes a minute and can save you the hassle of returns. Not sure? No problem! Reach out to us — we’re happy to help you find the right part.
