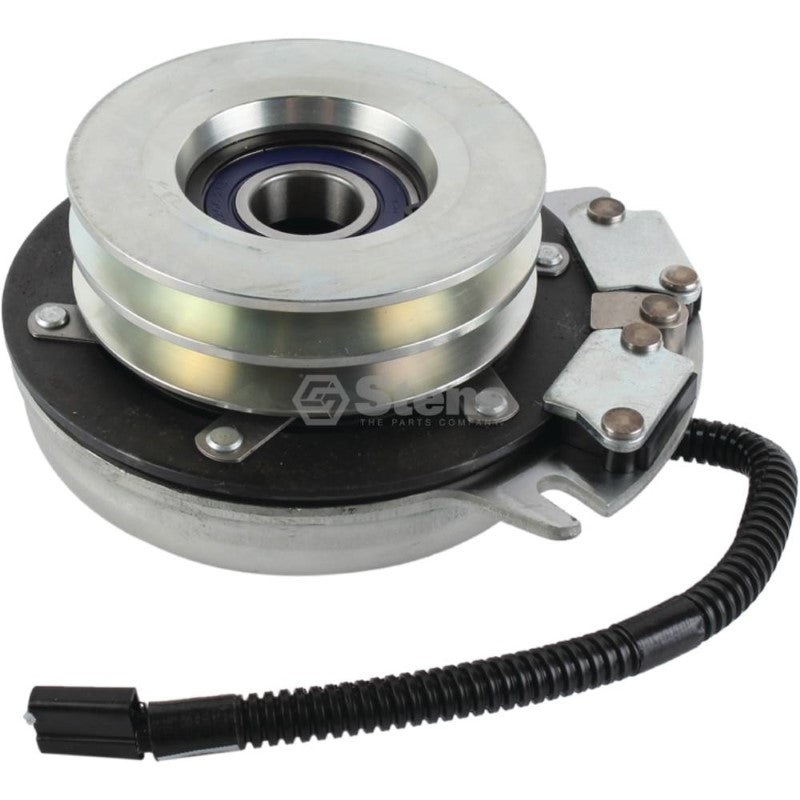

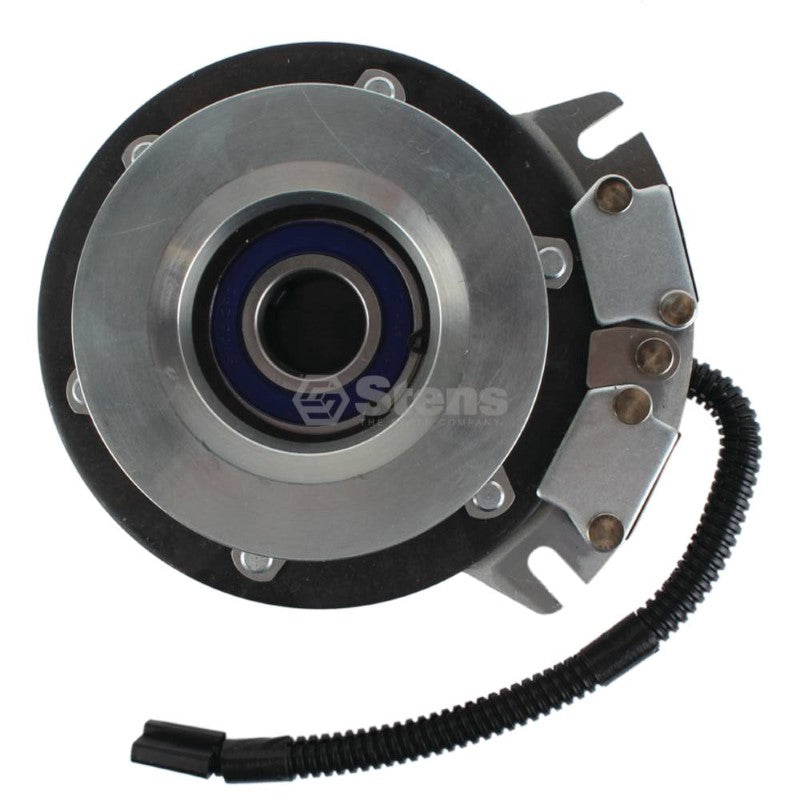

Xtreme PTO Clutch
Grasshopper 606242
REPLACES OEM
Craftsman 35520, 58925, 7058925, 7058925YP
Grasshopper 388767, 388769, 606242
Kees 7058925
Massey Ferguson 58925, 7058925
McCulloch 58925, 7058925
Snapper 35520, 58925, 7058925, 7058925YP
Snapper Pro 58925, 7058925
Warner 5218-147, 5218-170, 5218-214, 5218-226, 5218-257, 5218-26, 5218-58, 5218-67
Woods 388767, 388769, 58925, 606242, 7058925, 73558, 74075
FITS MODELS
Grasshopper 618, 718K, 720K, 721, 721D, 721D2, 721DH2, 721G2, 722D2, 723KH2, 725, 725A, 725G2, 725K, 725K2, 729G2, 928G2 and 932G2
Snapper EZF, MZM, ZF, ZM and ZMT series
Snapper Pro EZF, MZM, ZF, ZM and ZMT series
Woods F21D, FZ21D, FZ23B and FZ28K, Serial No. 1174789 and higher, FZ25D; and Mow 'n Machines 6182, 6200, 6215, 6250, F23, F25, F25L and F27
SPECS
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model specifications
High Temperature Bearing Upgrade
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch

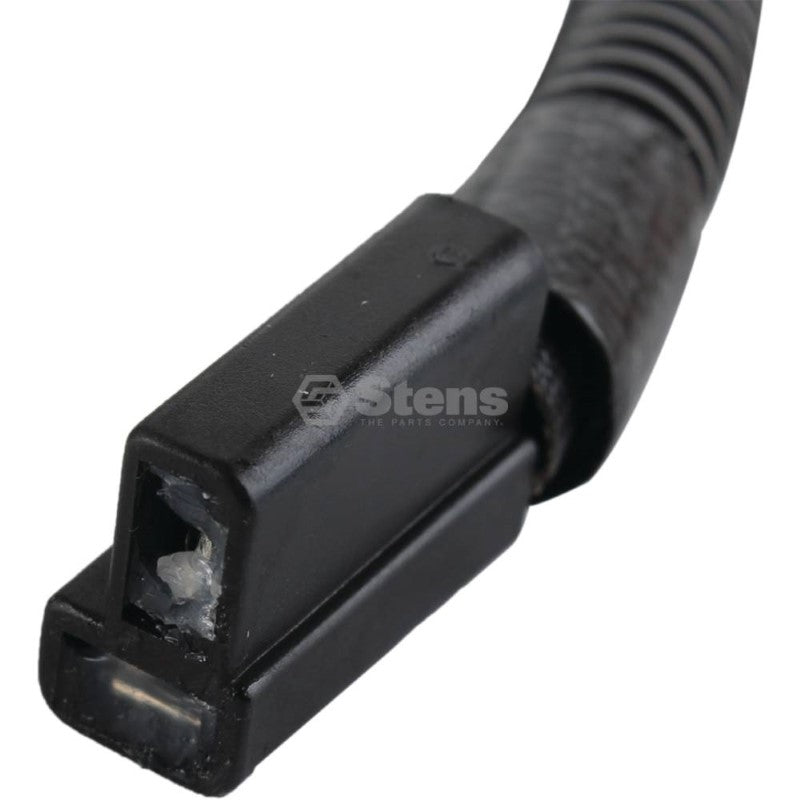

Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight, Impact resistant Wire Harness
Belt Width: Double A
ID: 1 1/8"
Pulley Diameter: 4 7/8"
Rotation Direction: Clockwise
Xtreme PTO Clutch
Grasshopper 606242
REPLACES OEM
Craftsman 35520, 58925, 7058925, 7058925YP
Grasshopper 388767, 388769, 606242
Kees 7058925
Massey Ferguson 58925, 7058925
McCulloch 58925, 7058925
Snapper 35520, 58925, 7058925, 7058925YP
Snapper Pro 58925, 7058925
Warner 5218-147, 5218-170, 5218-214, 5218-226, 5218-257, 5218-26, 5218-58, 5218-67
Woods 388767, 388769, 58925, 606242, 7058925, 73558, 74075
FITS MODELS
Grasshopper 618, 718K, 720K, 721, 721D, 721D2, 721DH2, 721G2, 722D2, 723KH2, 725, 725A, 725G2, 725K, 725K2, 729G2, 928G2 and 932G2
Snapper EZF, MZM, ZF, ZM and ZMT series
Snapper Pro EZF, MZM, ZF, ZM and ZMT series
Woods F21D, FZ21D, FZ23B and FZ28K, Serial No. 1174789 and higher, FZ25D; and Mow 'n Machines 6182, 6200, 6215, 6250, F23, F25, F25L and F27
SPECS
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model specifications
High Temperature Bearing Upgrade
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight, Impact resistant Wire Harness
Belt Width: Double A
ID: 1 1/8"
Pulley Diameter: 4 7/8"
Rotation Direction: Clockwise
Compatibility Confirmation
Ensure a seamless fit and top-notch performance by taking an extra minute to cross-verify your part selection with your equipment manual and serial number. This crucial step helps avoid the inconvenience and cost of returns. If you need assistance in this process, please do not hesitate to contact us. Our team will be more than happy to help you find the correct part.
