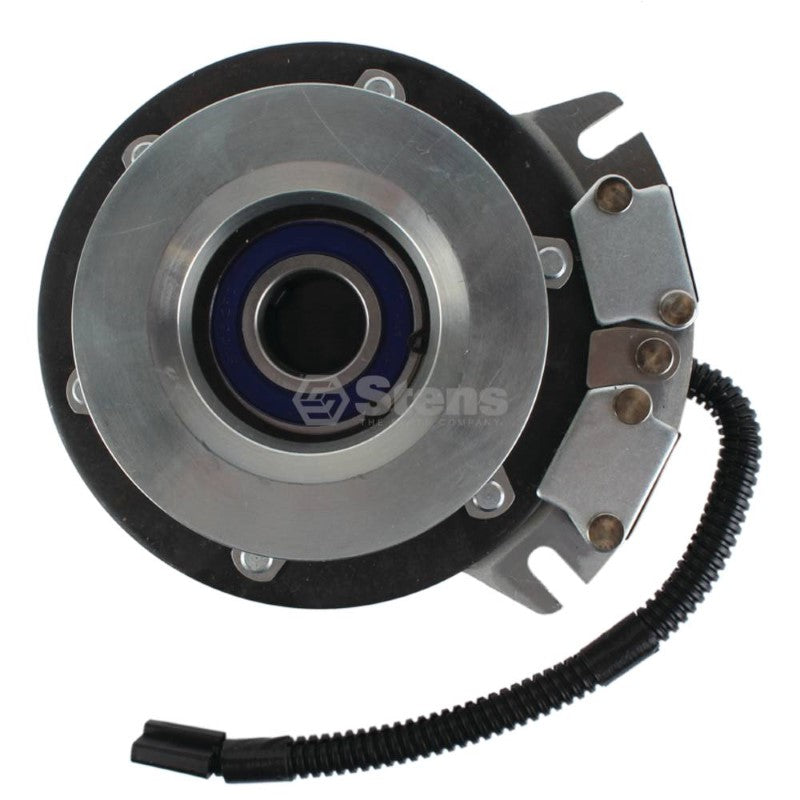

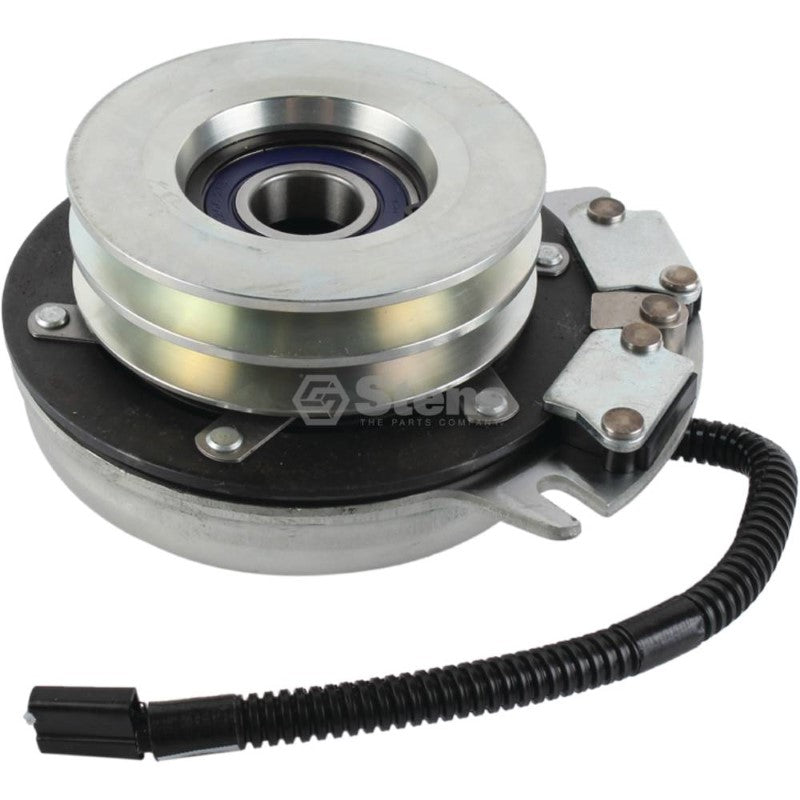

Xtreme PTO Clutch
Grasshopper 388771
REPLACES OEM
Grasshopper 388771
Woods 388771
FITS MODELS
Grasshopper 620T, 722D2, 722DT6, 725DT6, 727K2, 727T6, 729BT6, 729G2, 729T6, 735BT6, 928D2, 930D2 and 932G2
SPECS
Does not fit all applications - Verify part number by referring to model specifications
High Temperature Bearing Upgrade
High Torque Cool Coil Upgrade
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight, Impact resistant Wire Harness
Belt Width: 1/2" or 5/8"
ID: 1 1/8"
Pulley Diameter: 4 7/8"
Rotation Direction: Clockwise
Make Sure It Fits!
Double-check your equipment manual and model number to be sure this part is the right one. It only takes a minute and can save you the hassle of returns. Not sure? No problem! Reach out to us — we’re happy to help you find the right part.
