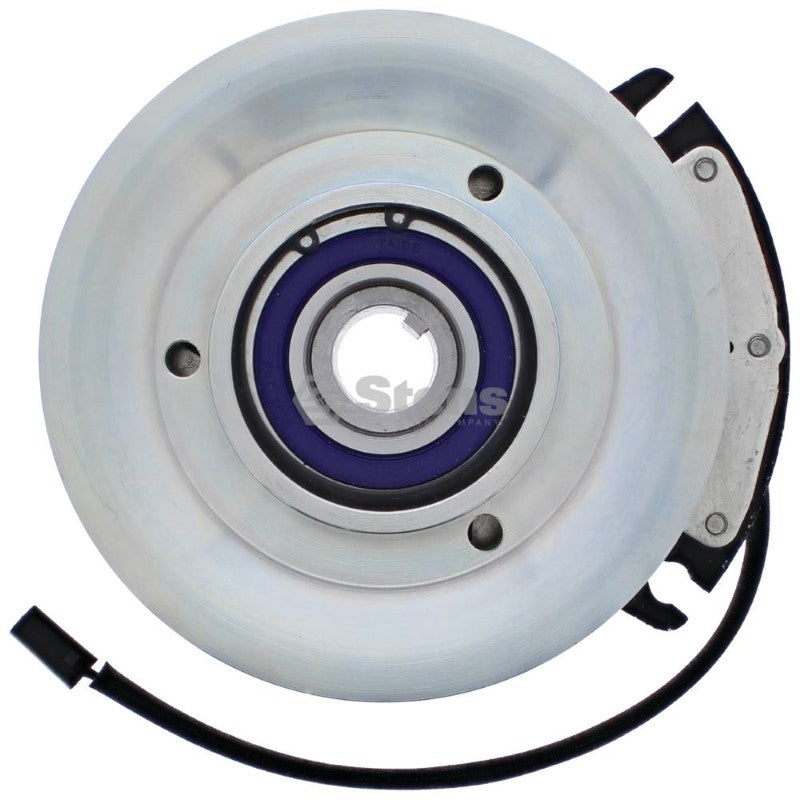

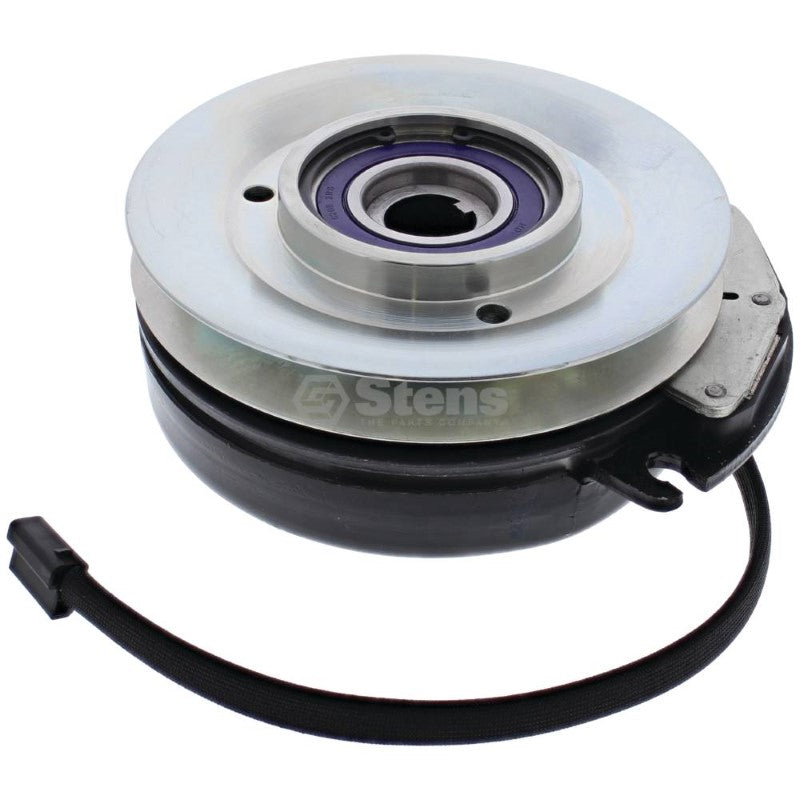

Xtreme PTO Clutch
Exmark 116-1626
REPLACES OEM
Exmark 109-7667, 116-1609, 116-1626
Warner 5228-7
FITS MODELS
Exmark LXS31BV725, LXS35BV605, LXS35BV605, LXS35BV605, LXS35BV665, LXS35BV665, LXS35BV665, LXS35BV725, LXS35BV725, LXS35BV725, LZ22LKA523, LZ22LKA604, LZ23KC604, LZ23LKA604, LZ25KC523, LZ25KC604, LZ25KC724, LZ26KC604 and LZ26KC724
SPECS
Does not fit all applications - Verify part number by referring to model specifications
High Torque Cool Coil Upgrade

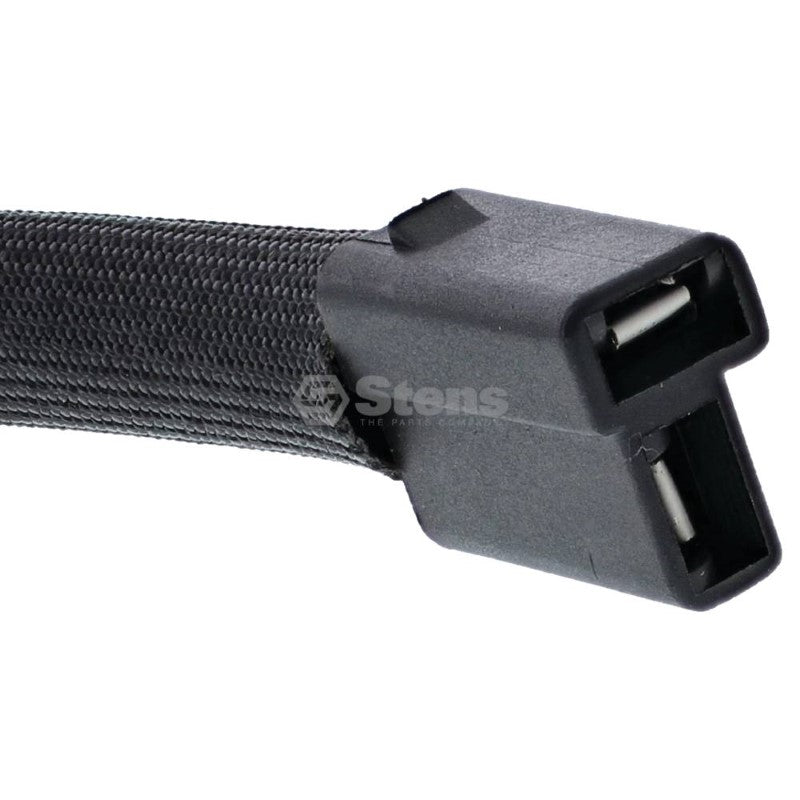

Integrated Water Tight Wire Harness
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Triple Wire Protection
Belt Width: 5/8"
ID: 1 1/8"
Pulley Diameter: 7 1/4"
Rotation Direction: Clockwise
Xtreme PTO Clutch
Exmark 116-1626
REPLACES OEM
Exmark 109-7667, 116-1609, 116-1626
Warner 5228-7
FITS MODELS
Exmark LXS31BV725, LXS35BV605, LXS35BV605, LXS35BV605, LXS35BV665, LXS35BV665, LXS35BV665, LXS35BV725, LXS35BV725, LXS35BV725, LZ22LKA523, LZ22LKA604, LZ23KC604, LZ23LKA604, LZ25KC523, LZ25KC604, LZ25KC724, LZ26KC604 and LZ26KC724
SPECS
Does not fit all applications - Verify part number by referring to model specifications
High Torque Cool Coil Upgrade
Integrated Water Tight Wire Harness
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Triple Wire Protection
Belt Width: 5/8"
ID: 1 1/8"
Pulley Diameter: 7 1/4"
Rotation Direction: Clockwise
Compatibility Confirmation
Ensure a seamless fit and top-notch performance by taking an extra minute to cross-verify your part selection with your equipment manual and serial number. This crucial step helps avoid the inconvenience and cost of returns. If you need assistance in this process, please do not hesitate to contact us. Our team will be more than happy to help you find the correct part.
