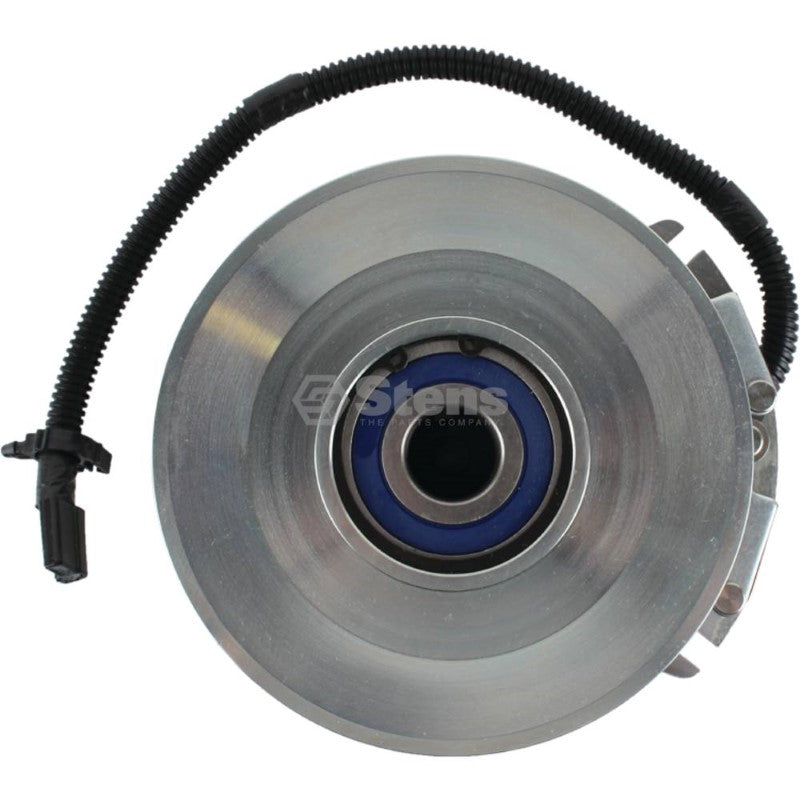

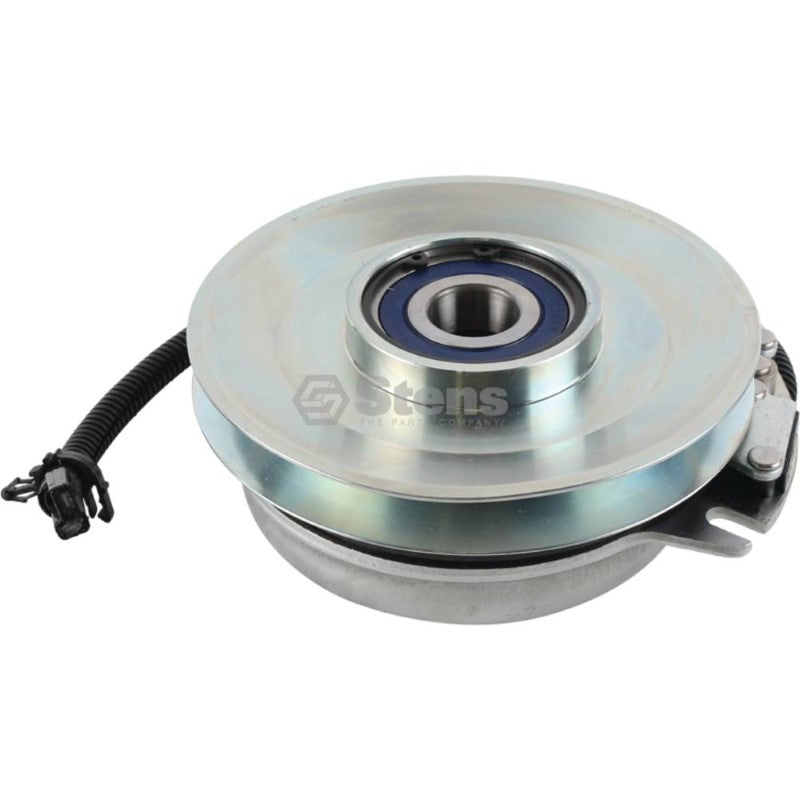

Xtreme PTO Clutch
Exmark 116-1611
REPLACES OEM
Exmark 103-3132, 103-3246, 103-4000, 103-4057, 103-5835, 103-6579, 109-7665, 109-7673, 116-1611
Toro 103-3132, 103-3246, 103-4000, 103-4057, 103-5835, 103-6579, 109-7665, 109-7673, 116-1611
Warner 5218-168, 5218-202, 5218-209, 5218-99
FITS MODELS
Exmark Lazer Z AC EFI, Serial No. 440,000 and higher, Lazer Z air cooled EFI, Serial No. 720,000 and higher, Lazer Z AS EFI, Serial No. 510,000-789,999, Lazer Z AS, Serial No. 510,000-719,999 and Lazer Z EFI, Serial No. 370,000-439,999
Toro Z Master Z500, Serial No. 280000001-311999999, Z557, Serial No. 240000001-260999999, Z560, Serial No. 270000001-270999999 and Z 5588E, Serial No. 240000001-260999999
SPECS
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model specifications
Heavy Duty "FatBoy Series" Upgrade

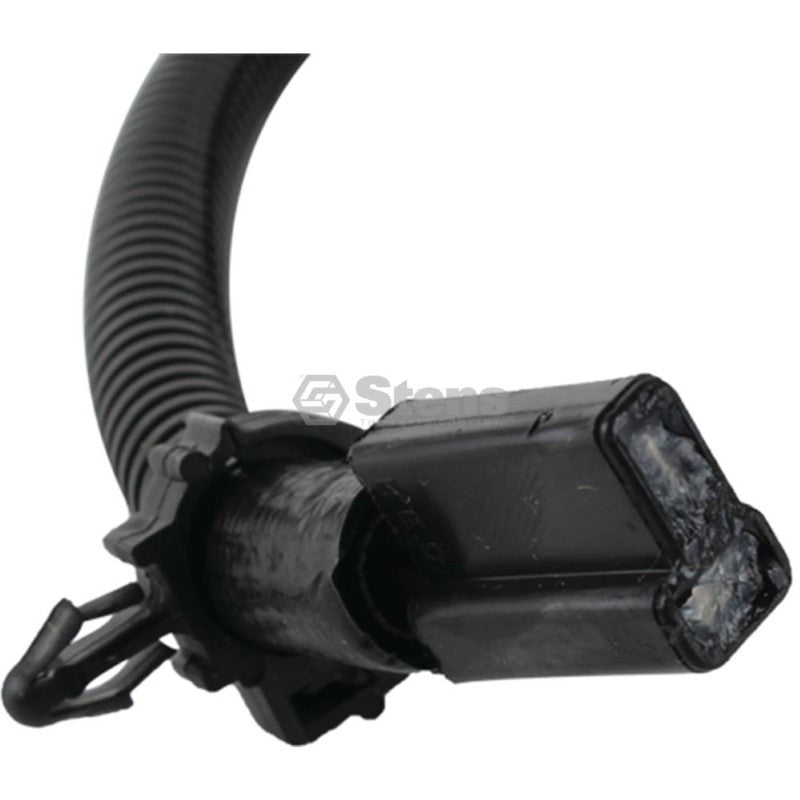

Integrated Water Tight Wire Harness
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width: 1/2" or 5/8"
ID: 1 1/8"
Pulley Diameter: 7 1/8"
Rotation Direction: Clockwise
Make Sure It Fits!
Double-check your equipment manual and model number to be sure this part is the right one. It only takes a minute and can save you the hassle of returns. Not sure? No problem! Reach out to us — we’re happy to help you find the right part.
