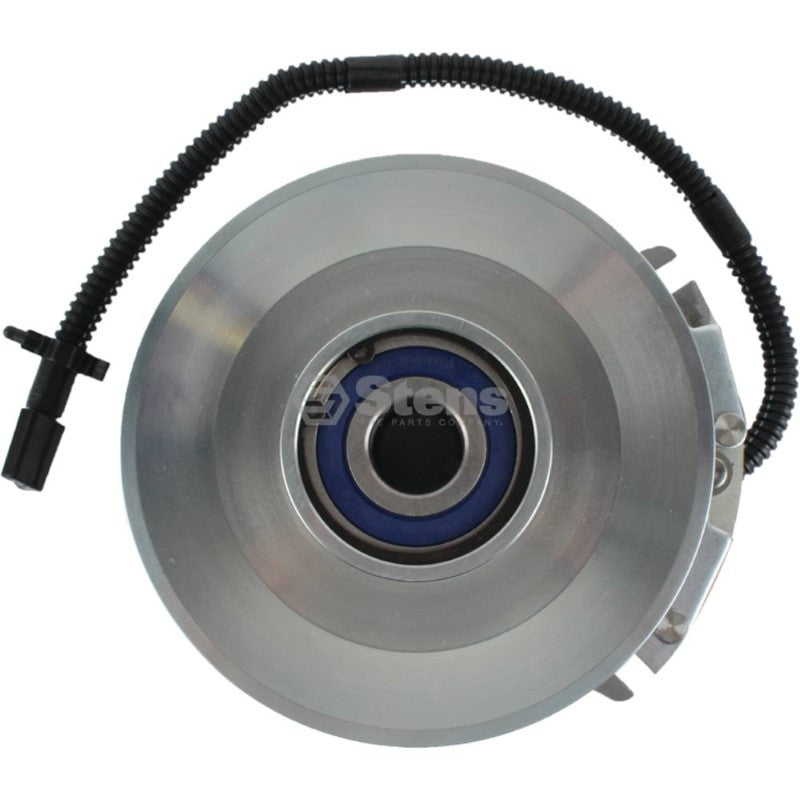

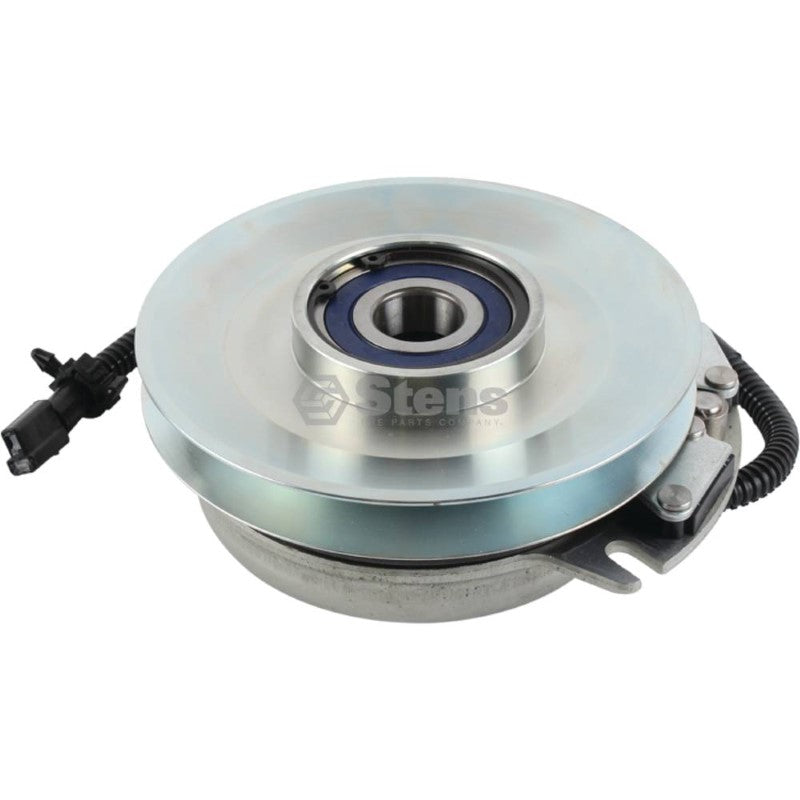

Xtreme PTO Clutch
Exmark 109-7666
REPLACES OEM
Exmark 103-2453, 103-3244, 103-6589, 109-7666
Toro 103-2453, 103-3244, 103-6589, 109-7666
Warner 5218-101, 5218-217
FITS MODELS
Exmark Lazer Z XS, Serial No. 440,000 and higher; Lazer Z AS, Serial No. 720,000-789,999; Lazer Z, Kawasaki units, Serial No. 370,000 and higher; and Lazer Z XS, Serial No. 600,000 and higher
Toro Z Master Z550, Serial No. 280000001-280999999, Z555, Serial No. 240000001-250999999, Z558, Serial No. 270000001-270999999 and Z587L, Serial No. 240000001-240999999
SPECS
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model specifications
Heavy Duty "FatBoy Series" Upgrade
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch

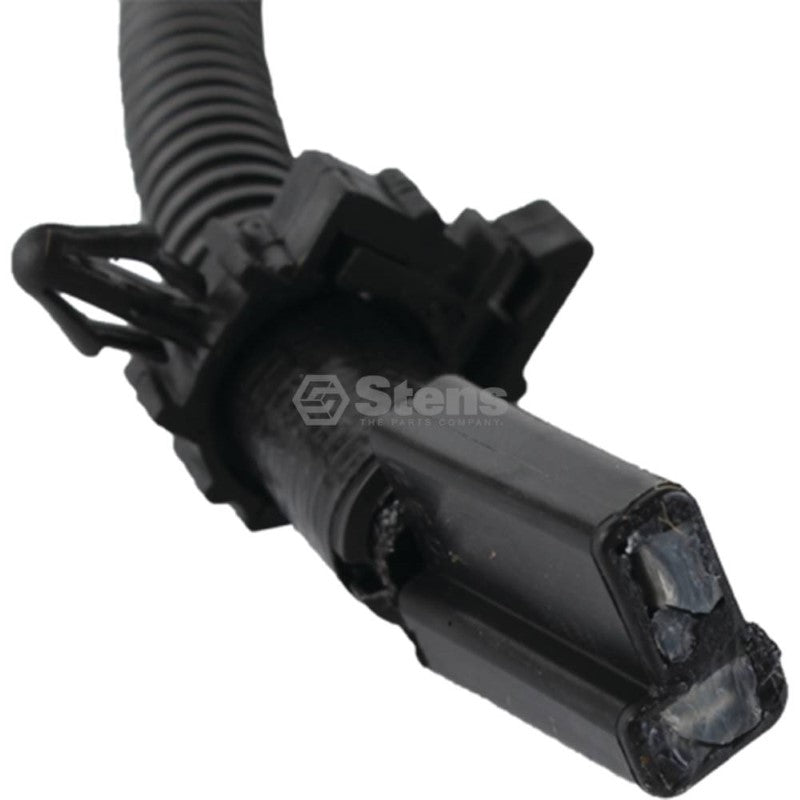

Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight, Impact resistant Wire Harness
Belt Width: 1/2" or 5/8"
ID: 1 1/8"
Pulley Diameter: 7 1/8"
Rotation Direction: Clockwise
Make Sure It Fits!
Double-check your equipment manual and model number to be sure this part is the right one. It only takes a minute and can save you the hassle of returns. Not sure? No problem! Reach out to us — we’re happy to help you find the right part.
