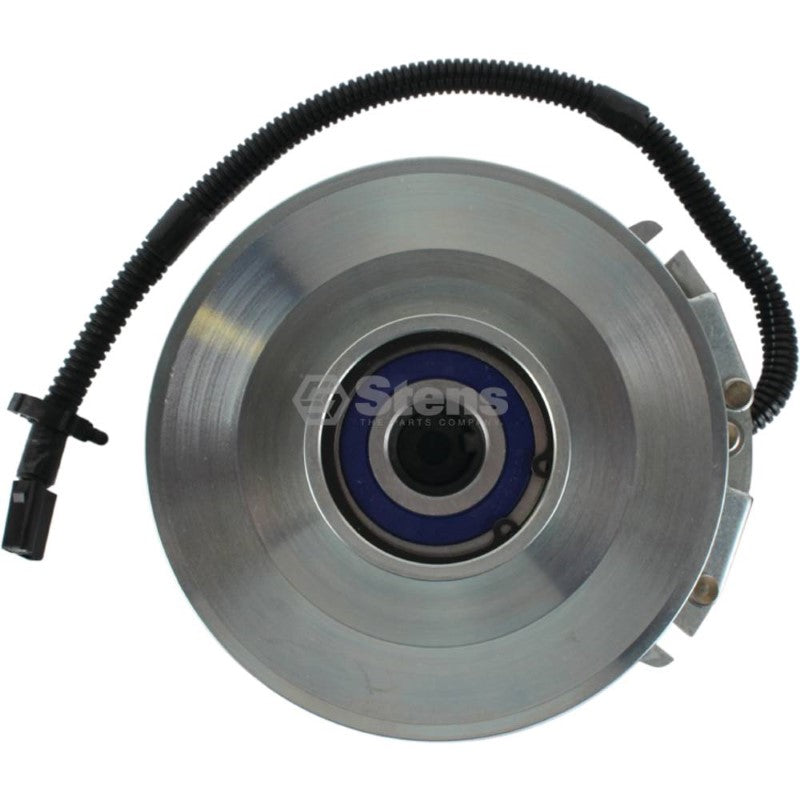

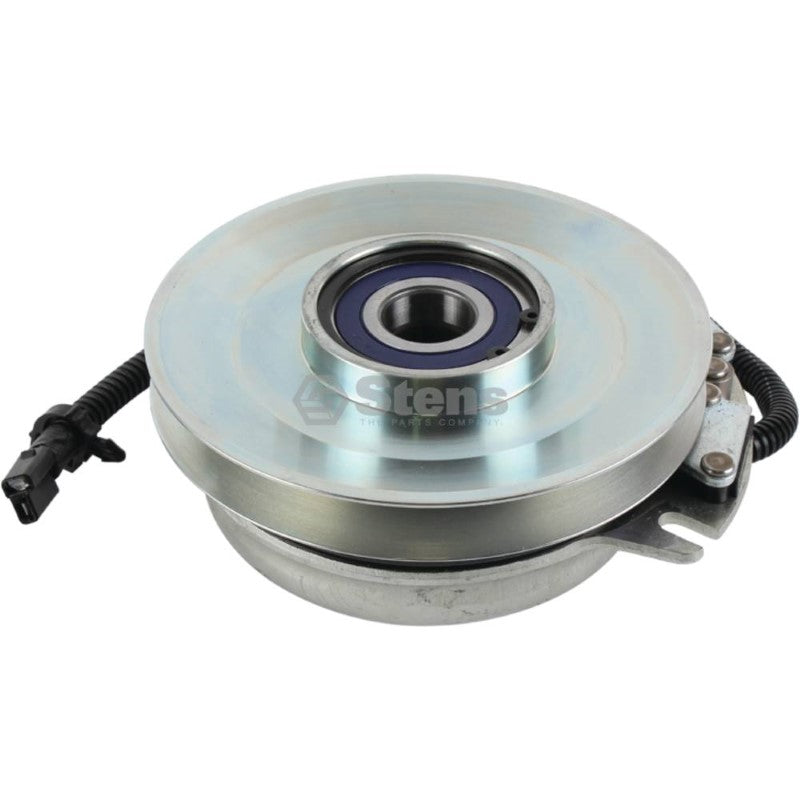

Xtreme PTO Clutch
Exmark 103-6590
REPLACES OEM
Exmark 103-3131, 103-3245, 103-6590
Toro 103-3131, 103-3245, 103-6590
Warner 5218-100, 5218-228, 5218-243
FITS MODELS
Exmark Lazer Z AC and AS, Serial No. 440,000 and higher
Toro Z Master Z500, Z528 and Z553
SPECS
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model specifications
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width: 1/2" or 5/8"
ID: 1"

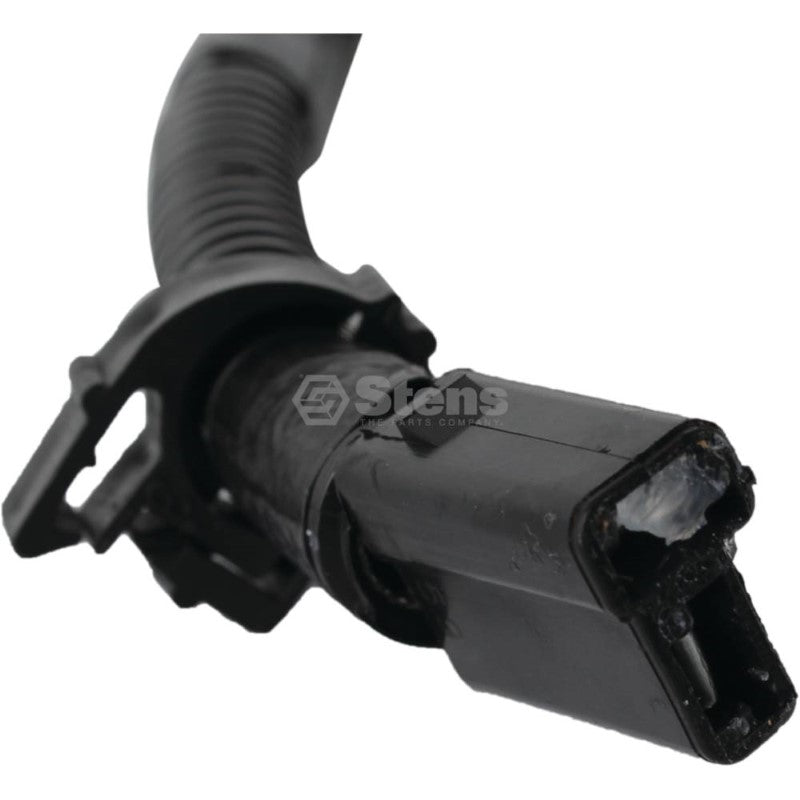

Includes: Clutch side and mower side wire harnesses
Pulley Diameter: 7 3/16"
Rotation Direction: Clockwise
Make Sure It Fits!
Double-check your equipment manual and model number to be sure this part is the right one. It only takes a minute and can save you the hassle of returns. Not sure? No problem! Reach out to us — we’re happy to help you find the right part.
