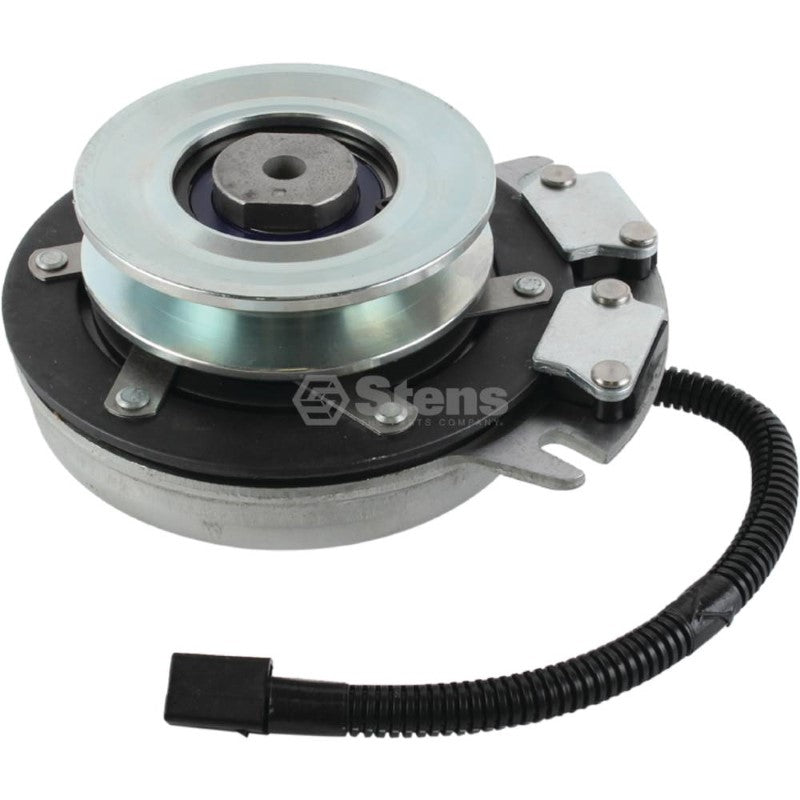

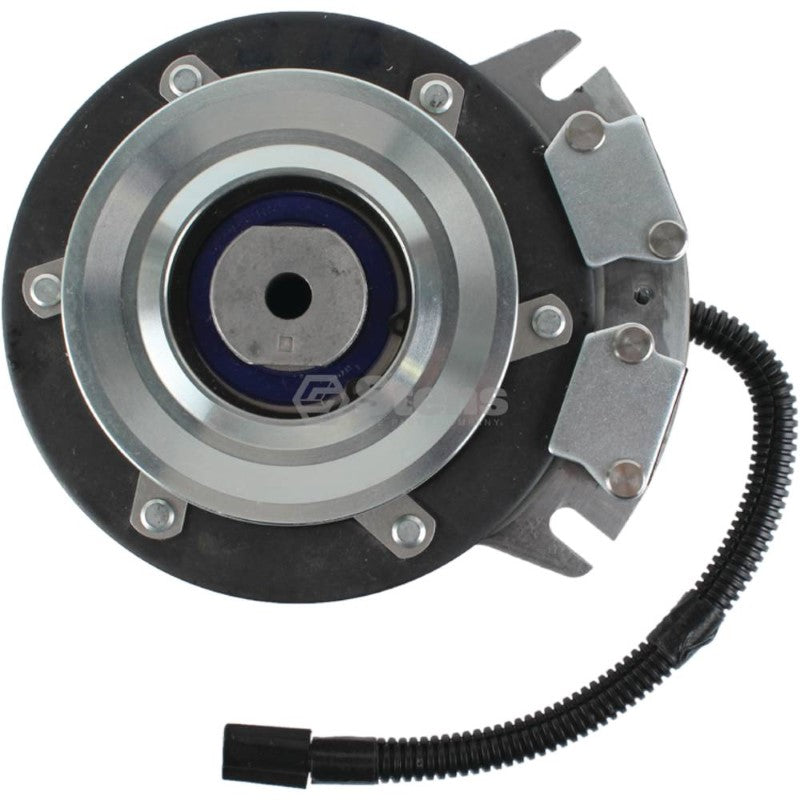

Xtreme PTO Clutch
Cub Cadet 917-3460
REPLACES OEM
Bolens 717-3460, 917-3460, CC917-3460
Craftsman 717-3460, 917-3460, CC917-3460
Cub Cadet 717-3460, 917-3460, CC917-3460
Huskee 717-3460, 917-3460, CC917-3460
MTD CC917-3460
Troy-Bilt 717-3460, 917-3460, CC917-3460
Warner 5218-45
FITS MODELS
MTD Z-16
SPECS
Does not fit all applications - Verify part number by referring to model specifications
High Temperature Bearing Upgrade
High Torque Cool Coil Upgrade
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Triple Wire Protection

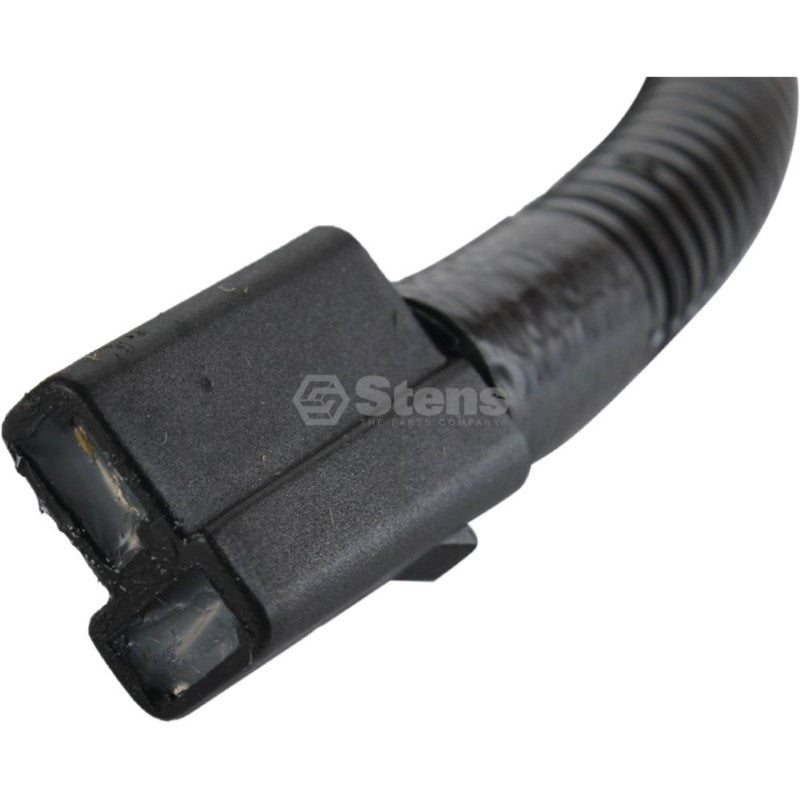

Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
Xtreme Torque Series
Belt Width: 1/2" or 5/8"
ID: 1"
Pulley Diameter: 4 1/2"
Rotation Direction: Counter Clockwise
Make Sure It Fits!
Double-check your equipment manual and model number to be sure this part is the right one. It only takes a minute and can save you the hassle of returns. Not sure? No problem! Reach out to us — we’re happy to help you find the right part.
