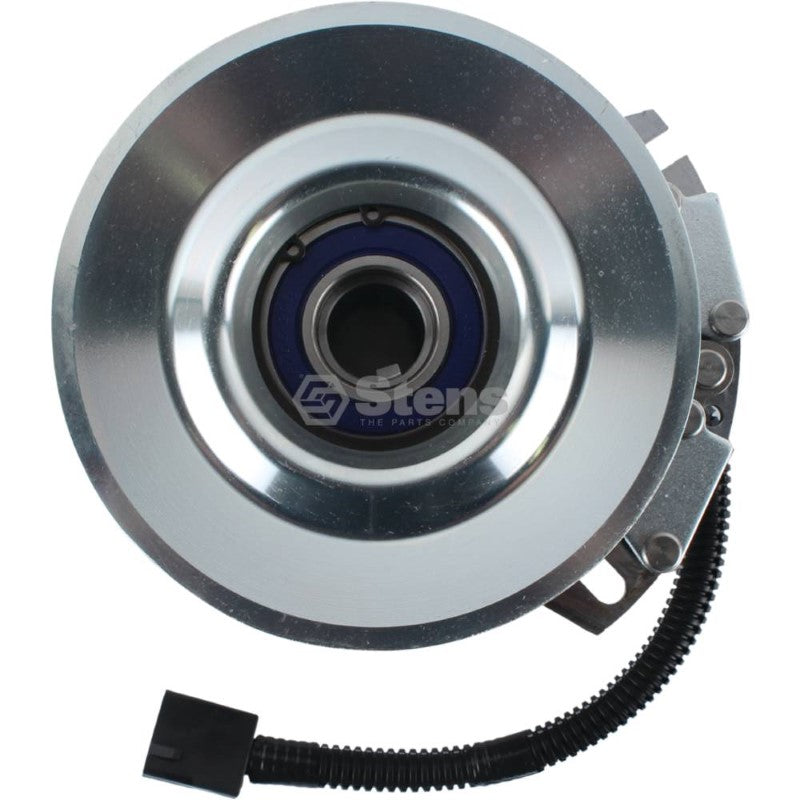

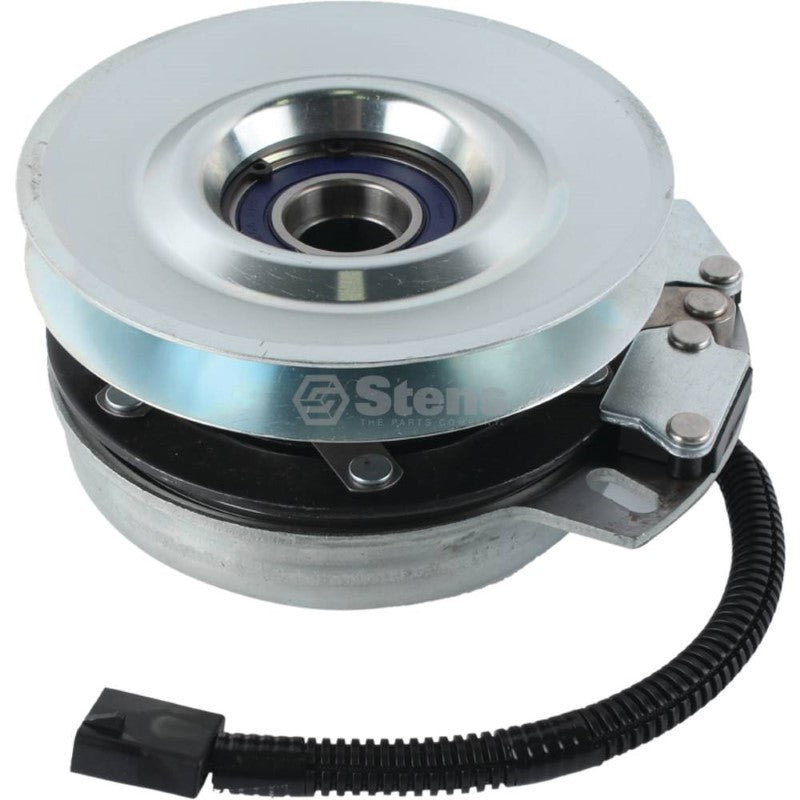

Xtreme PTO Clutch
Ariens 04678400
REPLACES OEM
Ariens 04678400
Gravely 04678400
Warner 5219-162
FITS MODELS
Ariens 915163, 915165 and 915173
Gravely 915160, 915184, 915162, 915164, 915186 and 915188
SPECS
Does not fit all applications - Verify part number by referring to model specifications
High Temperature Bearing Upgrade
High Torque Cool Coil Upgrade
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Triple Wire Protection

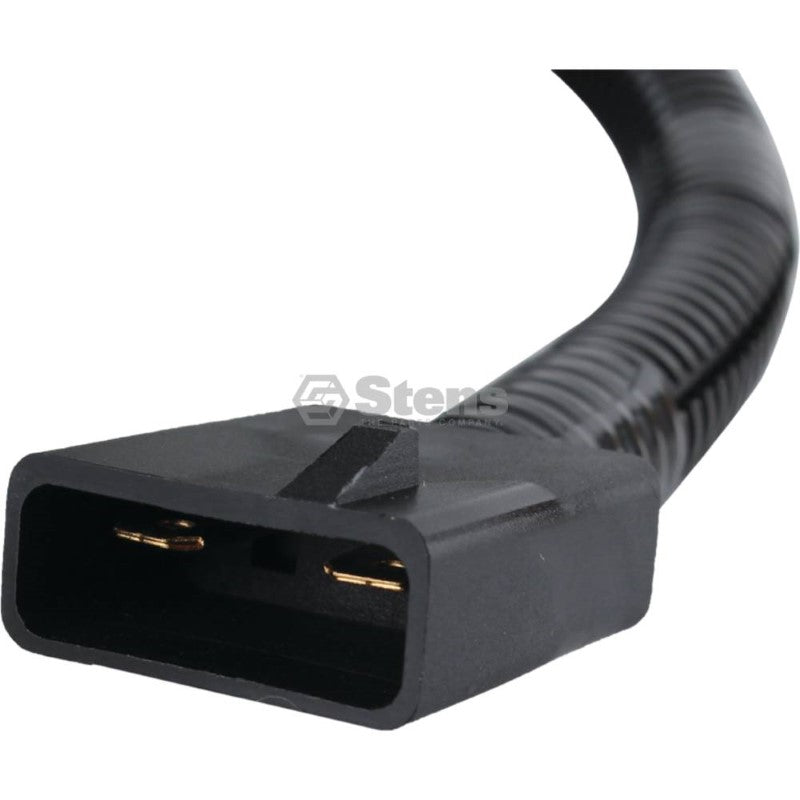

Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
Xtreme Torque Series
Belt Width: 1/2" or 5/8"
ID: 1"
Pulley Diameter: 6 5/16"
Rotation Direction: Counter Clockwise
Xtreme PTO Clutch
Ariens 04678400
REPLACES OEM
Ariens 04678400
Gravely 04678400
Warner 5219-162
FITS MODELS
Ariens 915163, 915165 and 915173
Gravely 915160, 915184, 915162, 915164, 915186 and 915188
SPECS
Does not fit all applications - Verify part number by referring to model specifications
High Temperature Bearing Upgrade
High Torque Cool Coil Upgrade
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Triple Wire Protection
Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
Xtreme Torque Series
Belt Width: 1/2" or 5/8"
ID: 1"
Pulley Diameter: 6 5/16"
Rotation Direction: Counter Clockwise
Compatibility Confirmation
Ensure a seamless fit and top-notch performance by taking an extra minute to cross-verify your part selection with your equipment manual and serial number. This crucial step helps avoid the inconvenience and cost of returns. If you need assistance in this process, please do not hesitate to contact us. Our team will be more than happy to help you find the correct part.
