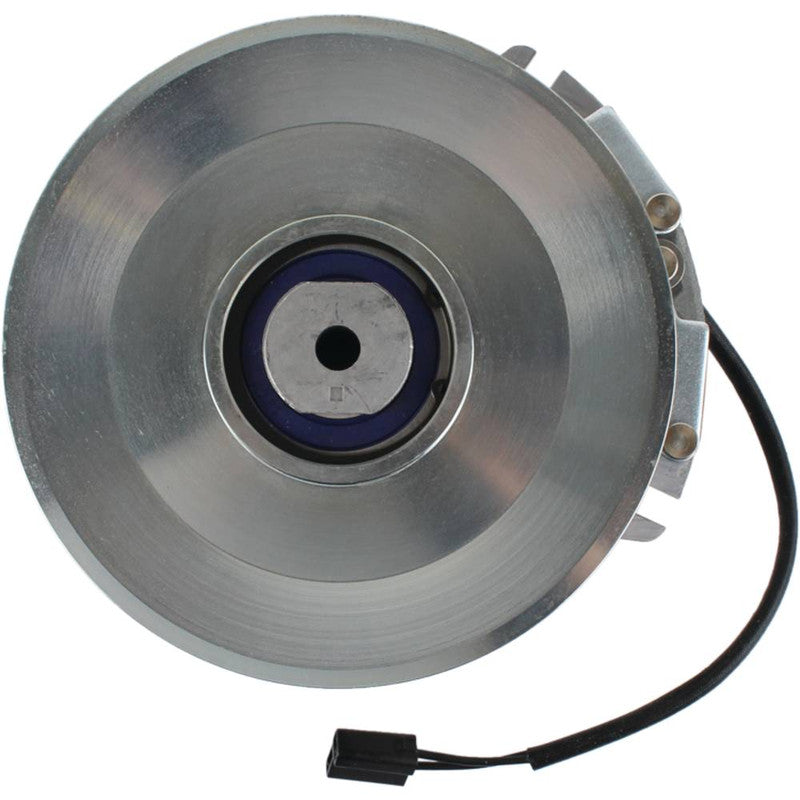

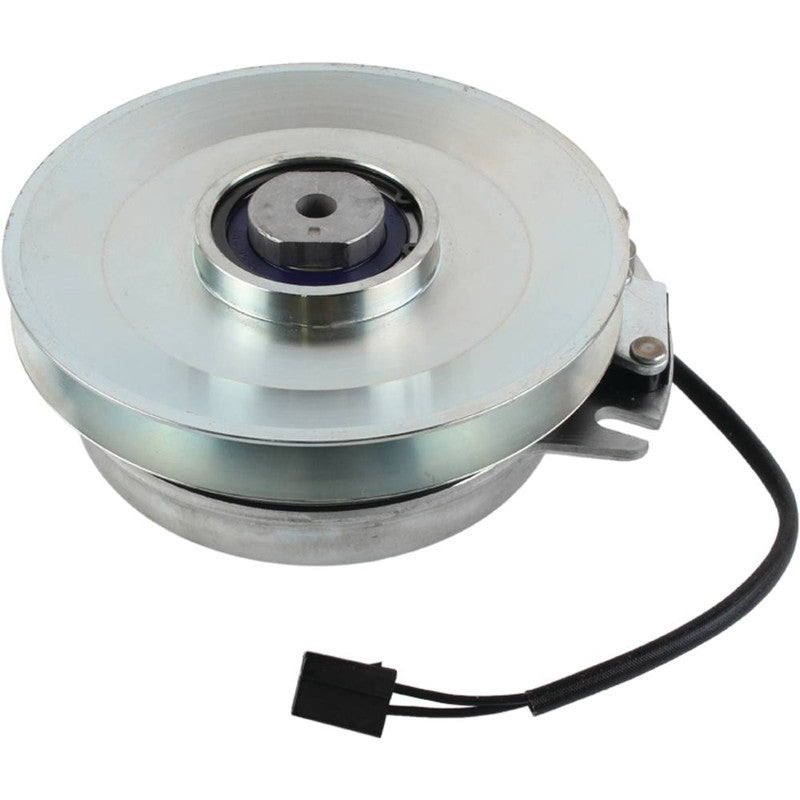

Stens X0017 Xtreme PTO Clutch
DESCRIPTION
Xtreme PTO Clutch
Toro 109-9276
REPLACES OEM
Exmark103-0690, 109-2916, 109-9276, 1-653048, 1-653292, 653048, 653292, E653048, E653292
Lawn-Boy109-9276
Toro103-0690, 105-3630, 109-2916, 109-9276, 1-653048, 1-653292, 653048, 653292, E653048, E653292
Warner5218-215, 5218-251, 5218-44, 5218-80, 5218-80C
Wright Mfg.71410013
FITS MODELS
Exmark Lazer Z HP, Serial No. 160,000 and higher
Toro Z Master, Z400, Serial No. 290000001-310999999, Z441, Serial No. 250000001-270999999, Z449, Serial No. 250000001-270999999, Z450, Serial No. 250000001-280999999 and Z453, Serial No. 250000001-270999999
Wright Mfg. Sentar 3, Serial No. 26980 and higher
SPECS
Cool Coil Technology
Do not use with Exmark 27HP model
Does not fit all applications - Verify part number by referring to model specifications
Heavy Duty "FatBoy Series" Upgrade
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch

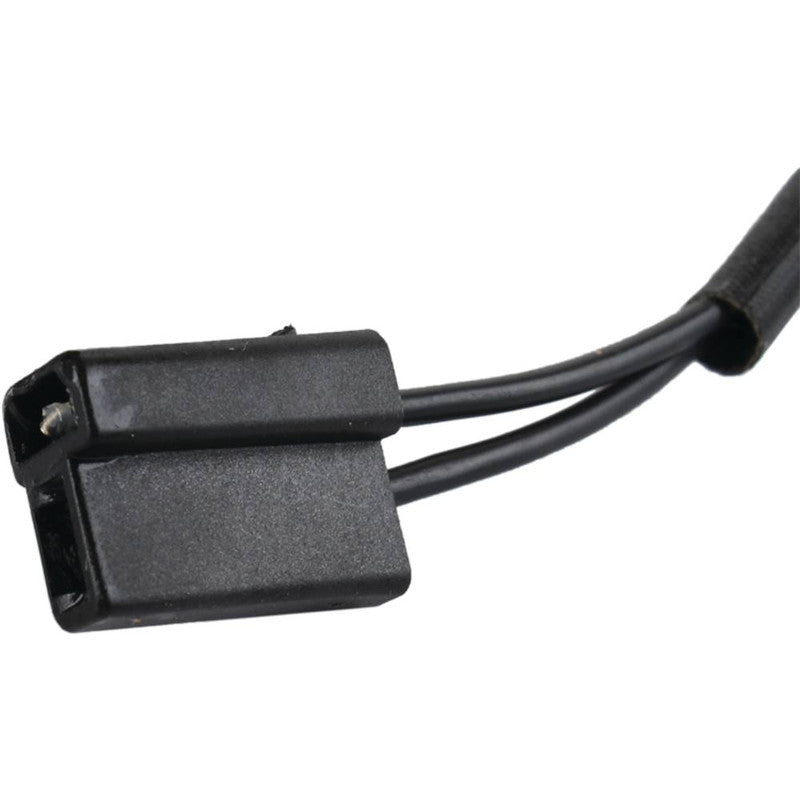

Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
Belt Width: 1/2" or 5/8"
ID: 1"
Pulley Diameter: 7 3/16"
Rotation Direction: Counter Clockwise
Make Sure It Fits!
Double-check your equipment manual and model number to be sure this part is the right one. It only takes a minute and can save you the hassle of returns. Not sure? No problem! Reach out to us — we’re happy to help you find the right part.
