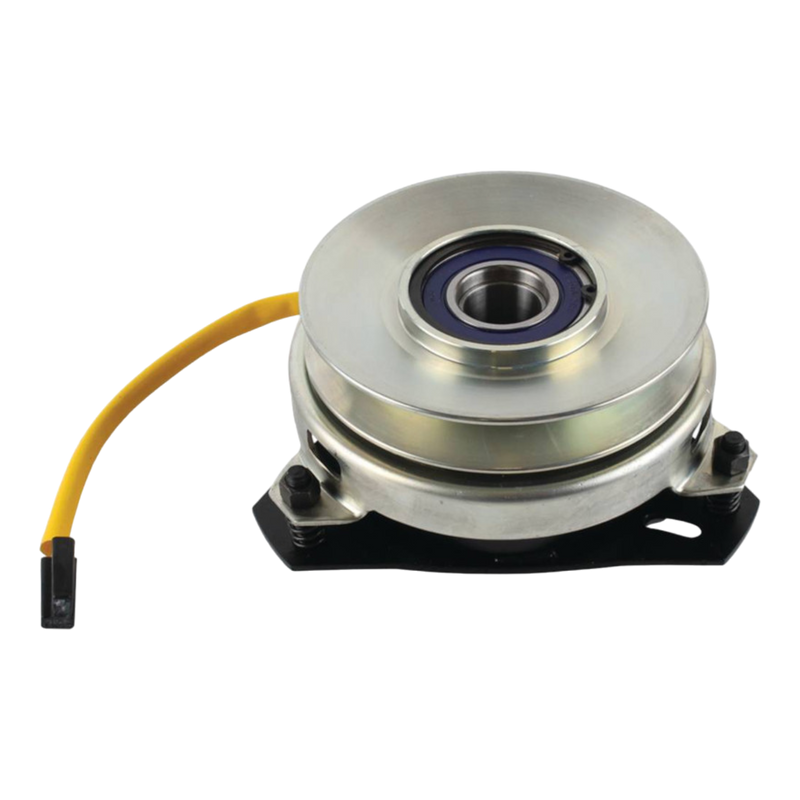

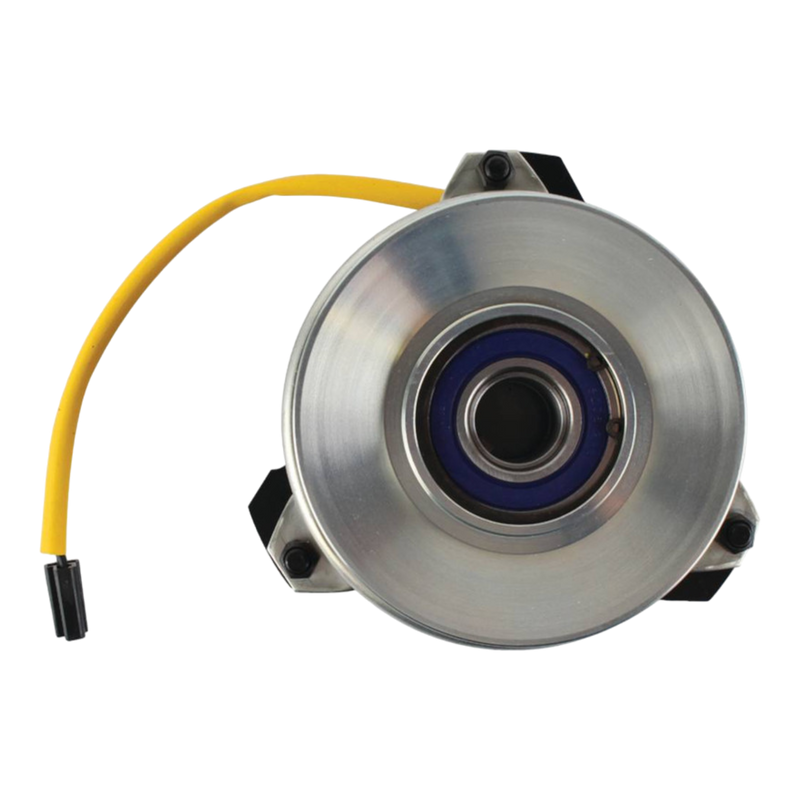

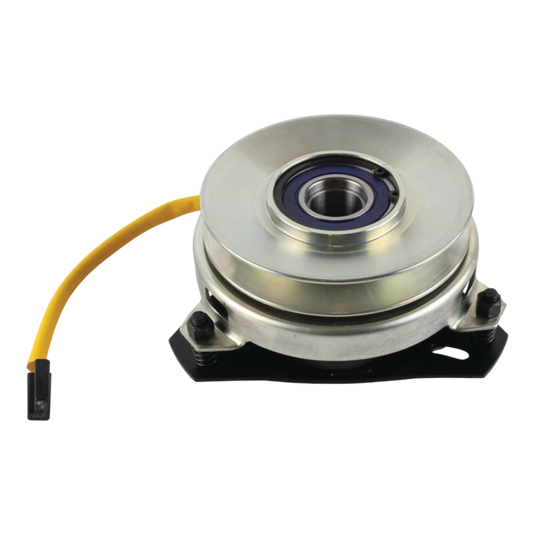

MTD 917-3497 PTO Clutch Replacement Stens X0185
Xtreme PTO Clutch
MTD 917-3497
REPLACES OEM
AGCO 1692430, 1703816SM
Bolens 1742518, 1755341, 1755341P, 717-0983, 717-1708, 717-3497, 917-0983, 917-1708, 917-3497, 959-3230, B1755341, GW-1755341P, GW-B1755341
Case IH 990947, C32372, C33197, C47443
Craftsman 16343, 1703816SM, 1742518, 1755341, 1755341P, 19982, 53679, 7016343, 7053679, 707402, 7074022, 7074022YP, 717-0983, 717-1708, 717-3036, 717-3497, 74022, 7-4022, 917-0983, 917-1708, 917-3497, 959-3230, B1755341, GW-1755341P, GW-B1755341
Cub Cadet 1742518, 1755341, 1755341P, 717-0983, 717-0983P, 717-1708, 717-3036, 717-3497, 917-0983, 917-1708, 917-3497, 959-3230, B1755341, GW-1755341P, GW-B1755341
Ford/New Holland 9800686, LB740401
Ingersoll Rand 990947, C32372, C33197, C47443
Jacobsen 990947, C33197, C47443
King Cat 232201
Lawn-Boy 243038, 740401
MTD 1742518, 1755341, 1755341P, 717-0983, 717-0983P, 717-1708, 717-3036, 717-3497, 917-0983, 917-1708, 917-3497, 959-3230
Simplicity 1703816, 1703816SM, 71703816
Snapper 16343, 19982, 53679, 7016343, 7019982, 7053679, 7053679YP, 707402, 7074022, 7074022YP, 74022, 7-4022
Toro 113426, 11346, 99-8012
Troy-Bilt 1742518, 1755341, 1755341P, 717-1708, 717-3036, 717-3497, 917-1708, 917-3497, 959-3230, B1755341, GW-1755341P, GW-B1755341
Warner 1-5210-3, 5210-12, 5210-3, 5210-33, 5210-41, 5210-49, 5210-56, 5210-62, 5215-103, 5215-108, 5215-129, 5215-59
White 717-0983, 717-1708, 717-3497, 917-0983, 917-1708, 917-3497
FITS MODELS
Bolens FST14, FST15, LR13, LT14, LT145, LT15, LT16 and LT165
Cub Cadet 1110, 1105, 1215, 1220, 1225, 1325, 1405, 1415, 1420, 1605, 1610, 1615, 1620, 1715, 1720,1730, LT1018, LT1650, LT1800 LT1850 and LT2150
Ford 9800686
Lawn-Boy 156729, 52140, 52144A, 52145A, 52153, 52161, 52163, 52163A and 52164, 1991-1992
MTD 1527, 1600, 1800, 1170, 1180, 1515, 1517, FST14, FST15, LT13, LT14, LT15, LT16, LT145 and LT165
Simplicity 1613G, 1613H, 1615G, 1615H, 1616H, 2614H, 2616H, LT, LTG and LTH series
Snapper GT180, GYT, HT, LT, RYT, YT series, Snapper ZTR Scrambler, series 5-6, ZTR Twin Stick, series 6 and ZTR Yard Cruiser series 1-4
SPECS
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model specifications
For mower side wiring harness purchase XMC1003
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width: 1/2" or 5/8"
ID: 1"

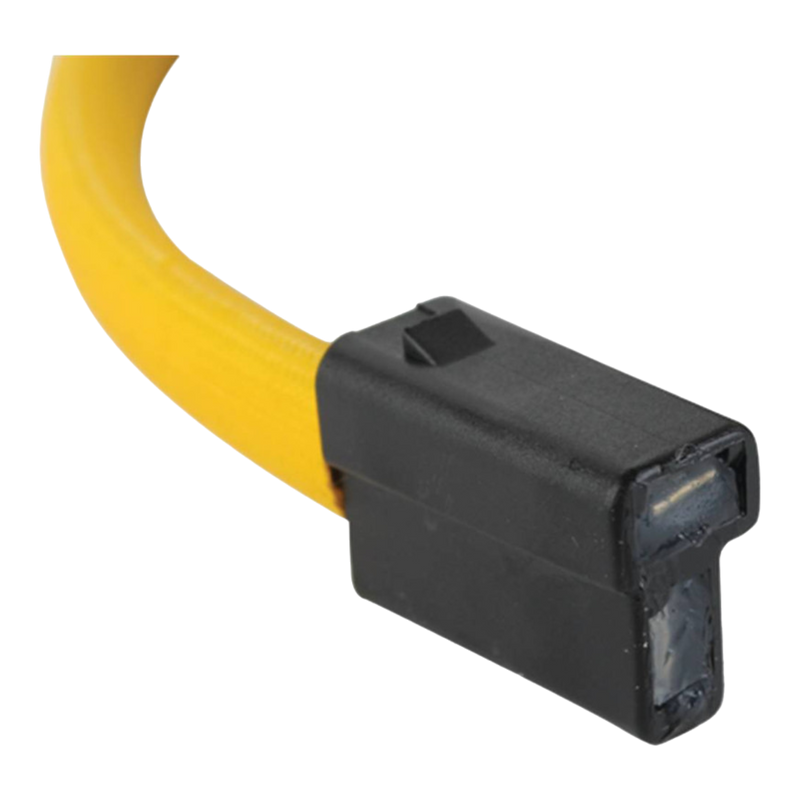

Includes: Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter: 5 5/16"
Rotation Direction: Counter Clockwise
Make Sure It Fits!
Double-check your equipment manual and model number to be sure this part is the right one. It only takes a minute and can save you the hassle of returns. Not sure? No problem! Reach out to us — we’re happy to help you find the right part.
