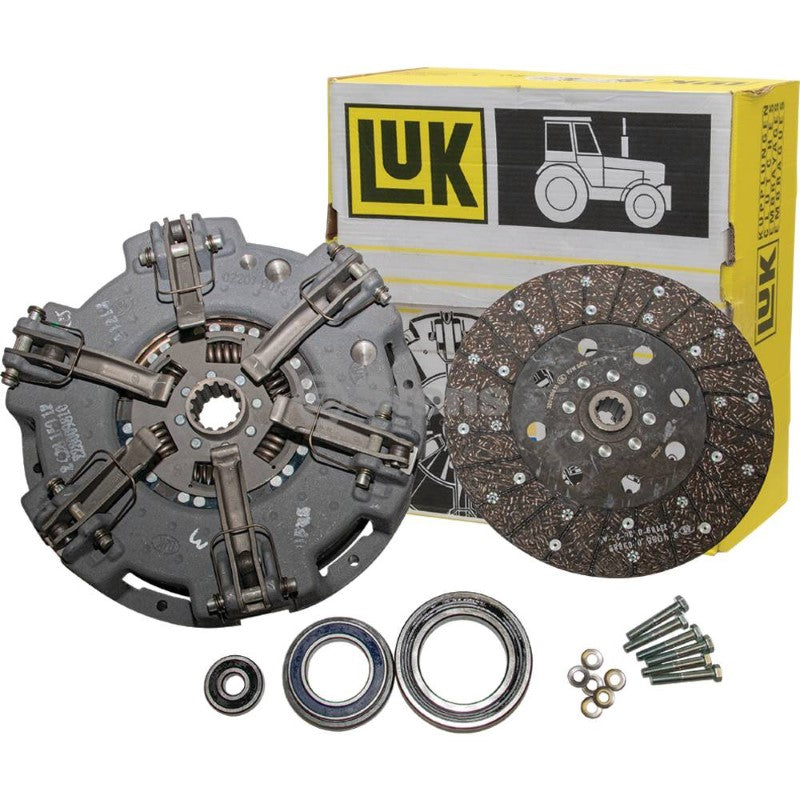

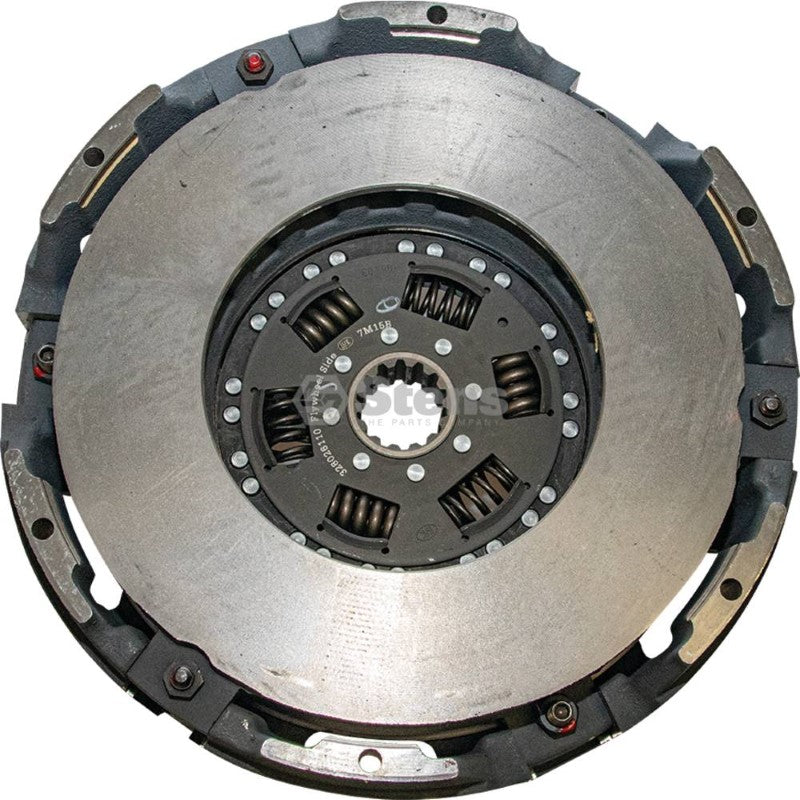

LuK Clutch Kit
LuK 628105310
REPLACES OEM
CaseIH 5092788, 5092792, 5092795, 5092796
Fiat 5092788, 5092792, 5092795, 5092796, 628-1034-30
Ford/New Holland 2022325, 2022342, 228-0077-12, 228-0098-10, 25174627, 25582578, 328-0186-16, 410-0025-40, 47135670, 47512400, 500-0284-40, 500-0459-00, 5085403, 5085416, 5088429, 5092786, 5092788, 5092791, 5092792, 5092795, 5092796, 5097922, 5097924, 5097926, 5106854, 5119875, 5121348, 5122028, 5139337, 5145710, 5145715, 5145717, 5150646, 5150652, 5154701, 5154703, 5154798, 5154834, 5154843, 5154878, 5157318, 5158626, 5162897, 5162900, 5197980, 5198980, 81814592, 82824592, 84177325, 84328333, 84328336, 84328341, 84328831, 84328833, 84353939, 87289219, 87345759, 87541561, 87541562, 9973689, 9976506, B513160, K51336186, K5197980, K51979980, K87345759
LuK 628103412, 628103430, 628105310
FITS MODELS
Case/International Harvester Farmall 65A, JX85 and JX90 Tractor
Fiat446, 450, 466, 480, 500, 530, 540, 55-46, 55-56, 55-56LM, 55-66, 55-66LP, 55-88, 55-90, 550, 5530, 566, 570, 580, 60-46, 60-56, 60-66, 60-66LP, 60-66S, 60-76, 60-76F, 60-88, 60-90, 60-93, 60-94, 600, 62-86, 640, 65-46, 65-56, 65-66, 65-66S, 65-88, 65-90, 65-93, 65-94, 6530, 666, 670, 680, 70-56, 70-66, 70-66F, 70-66LP, 70-66S, 70-66V, 70-76, 70-76F, 70-76LP, 70-76V, 70-88, 70-90, 72-86, 72-93, 72-94, 740, 766, 780, 80-66, 80-66F, 80-66S, 80-76, 80-88, 80-90, 82-86, 82-86F, 82-86LP, 82-93, 82-94, 85-90, 88-93 and 88-94
Ford/New Holland 4030, 4230, 4430, TD75D, TD85F and TD90D Tractor
SPECS
6 bolt, 6 lever
Cast iron
Verify OEM part number
Bearing OD 1110 mm
Bearing OD 290 mm
Bearing THK 120 mm
Bearing THK 221.600 mm
Disc OD 11"
ID 40 mm
Includes Pressure plate, discs, release bearings and pilot bearing
Spline Count 14
Spline Count 210
Type Double
Make Sure It Fits!
Double-check your equipment manual and model number to be sure this part is the right one. It only takes a minute and can save you the hassle of returns. Not sure? No problem! Reach out to us — we’re happy to help you find the right part.
