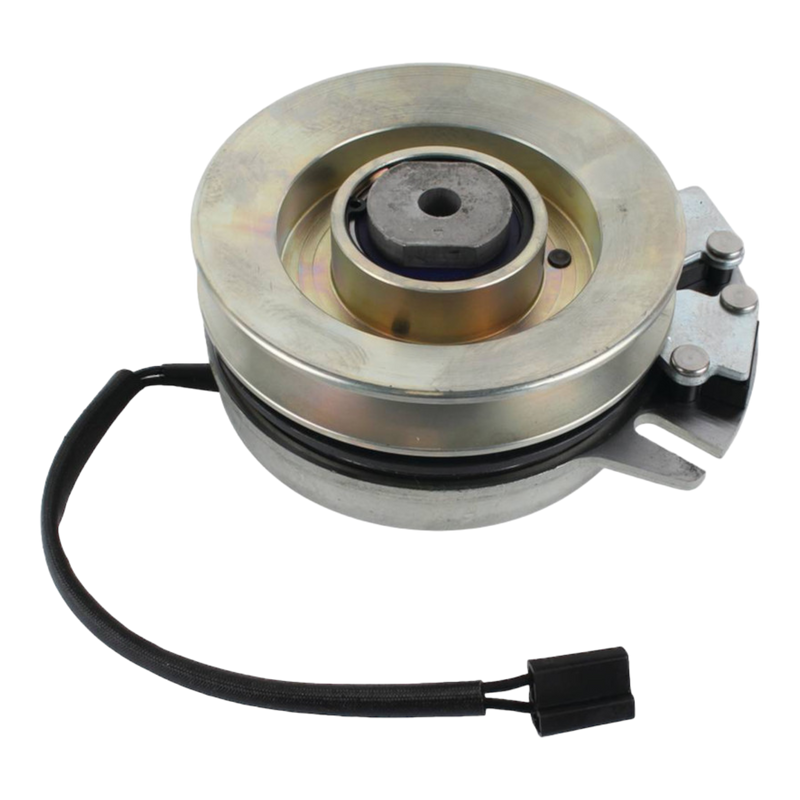

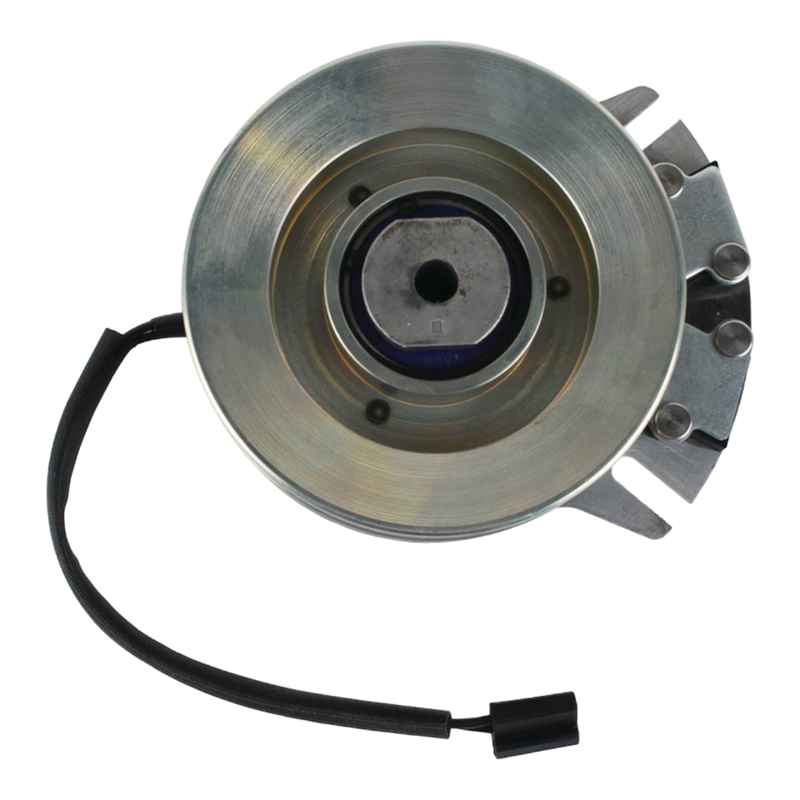

John Deere AM119683 Replacement PTO Clutch Stens X0003
Xtreme PTO Clutch
John Deere AM119683
REPLACES OEM
Ariens 03643100
AXXOM 892595
AYP 160889, 532160889, 53740
Bolens 1772388, 717-1459, 917-1459, GW-1772388
Craftsman 03643100, 160889, 1772388, 532160889, 53740, 688EC, 7053740, 7053740S, 7053740SM, 717-1459, 917-1459, GW-1772388
Cub Cadet 1772388, 504-01698, 717-1459, 917-1459, GW-1772388
Dixon 160889, 532160889
Electrolux 160889, 532160889
Exmark 104-3334
Gravely 03643100
Huskee 1772388, 717-1459, 917-1459, GW-1772388
Husqvarna 160889, 532160889
John Deere AM119683
Jonsered 160889, 532160889
Kees 160889, 532160889
Massey Ferguson 160889, 1772388, 532160889, 7053740, 717-1459, 917-1459
McCulloch 160889, 1772388, 532160889, 7053740, 717-1459, 917-1459
MTD 1772388, 504-01698, 717-1459, 917-1459, GW-1772388
Poulan 160889, 532160889
Roper 160889, 532160889
Snapper 53740, 7053740, 7053740S, 7053740SM
Snapper Pro 53740, 7053740
Swisher 688EC
Toro 104-3334
Troy-Bilt 1772388, 504-01698, 717-1459, 917-1459, GW-1772388
Warner 5217-27, 5217-28, 5217-35, 5217-6, 5217-7, 5217-9
White 1772388, 717-1459, 917-1459, GW-1772388
Woods 03643100
Yazoo 160889, 532160889
FITS MODELS
Ariens EZR, LT, Mini Zoom, Sierra, Sport Zoom, YT and Zoom series
Cub Cadet 1300, 13A-130F100 and 1405, 13A-145F100
Exmark Quest, Serial No. 790,000 and higher, with 42" deck
Gravely 1440 series, GLT 440, GLT448, Mini ZT, Sport ZT and ZT series
Husqvarna LTH15-LTH145, LTH130, LTH140, LTH150, LTH160, YTH1542A, YTH1542B, YTH1542D, YTH1542E, YTH1746A, YTH1746B, YTHK1542A, YTHK1542B and YTHK1746B
John Deere STX38 and STX46, Serial No. 270,000 and lower; black decks
Scotts STX38 and STX46, Serial No. 270,000 and lower; black decks
Snapper LT145H, LT160H and LTH180H; Yard Cruiser, series 0, 1 and 2; YZ Yard Cruiser, series 1 and 2, with 33" and 38" deck
Snapper Pro LT145H, LT160H and LTH180H; Yard Cruiser, series 0, 1 and 2; YZ Yard Cruiser, series 1 and 2, with 33" and 38" deck
Toro DH-150, DH-170, DH190, DH-200, DH-210 and DH-220; RTZ480H, Serial No. 280000001-290999999; TimeCutter 14-38Z, 16-38Z and 16-42Z, Serial No. 230000001-240999999; TimeCutter Z420, Serial No. 250000001-270999999, Z4200, Serial No. 230000001-290999999, Z4220 and Z4202, Serial No. 280000001-290999999; and ZD420 and ZD420T, Serial No. 260000001-311999999
Troy-Bilt LTX13095, LTX13102, LTX13103, LTX13105, LTX13123 and LTX13104
Woods R1540
SPECS
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model specifications
Heavy Duty "FatBoy Series" Upgrade
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch

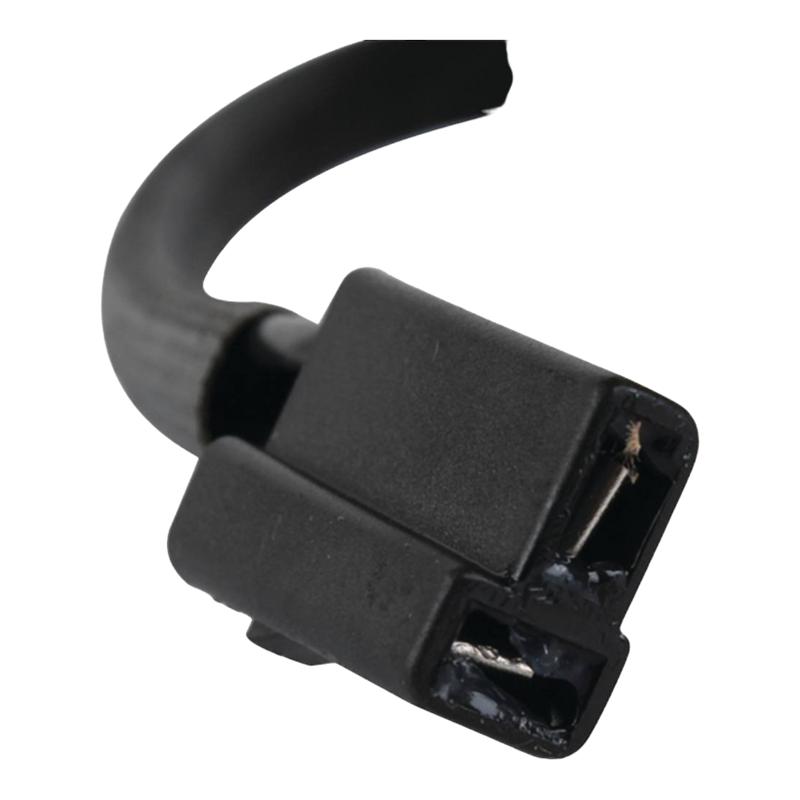

Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
Belt Width: 1/2" or 5/8"
ID: 1"
Pulley Diameter: 5 3/8"
Rotation Direction: Counter Clockwise
Make Sure It Fits!
Double-check your equipment manual and model number to be sure this part is the right one. It only takes a minute and can save you the hassle of returns. Not sure? No problem! Reach out to us — we’re happy to help you find the right part.
