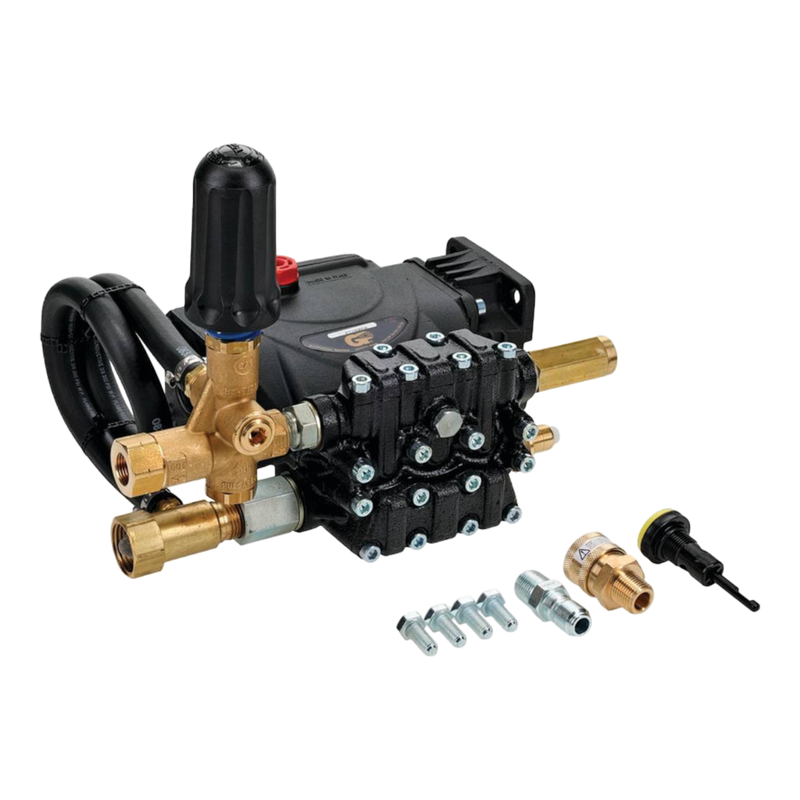

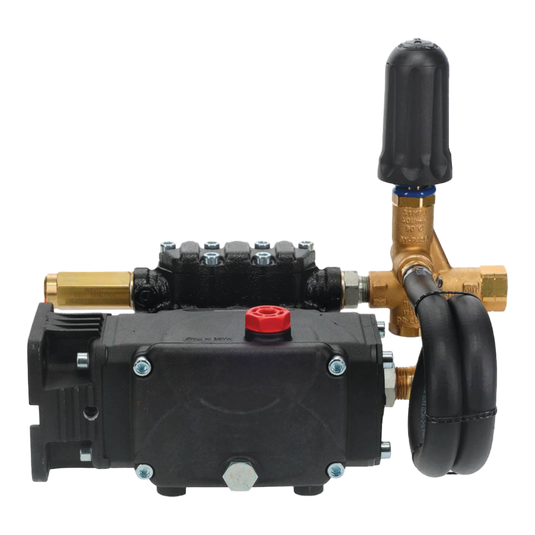

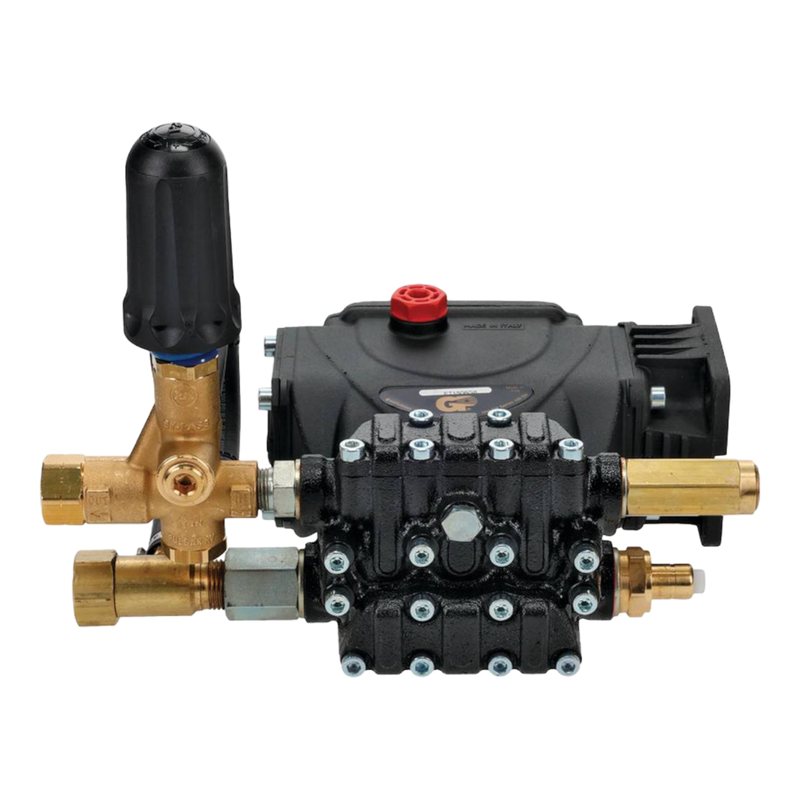

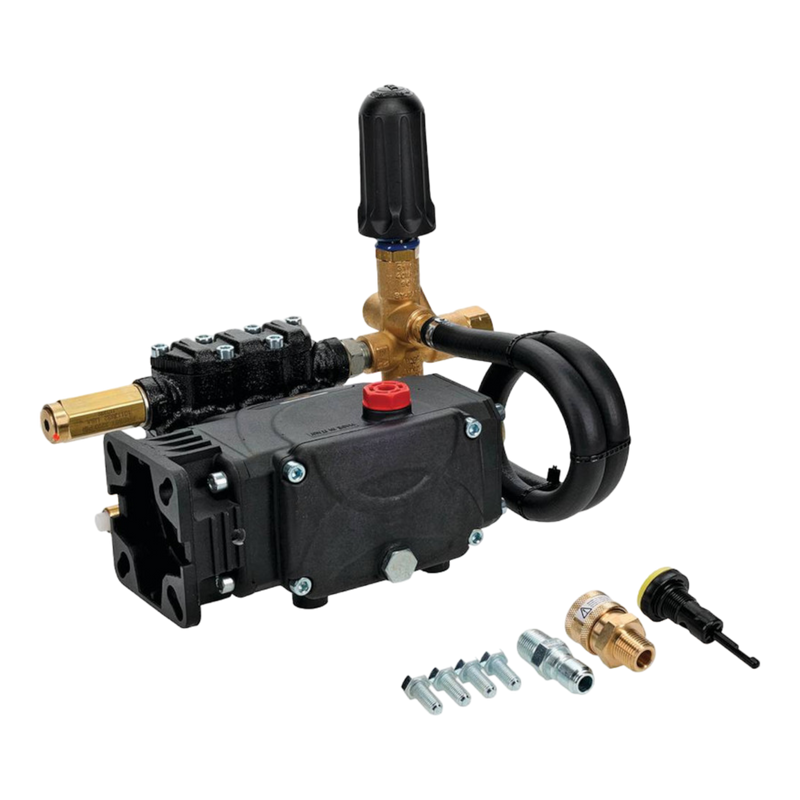

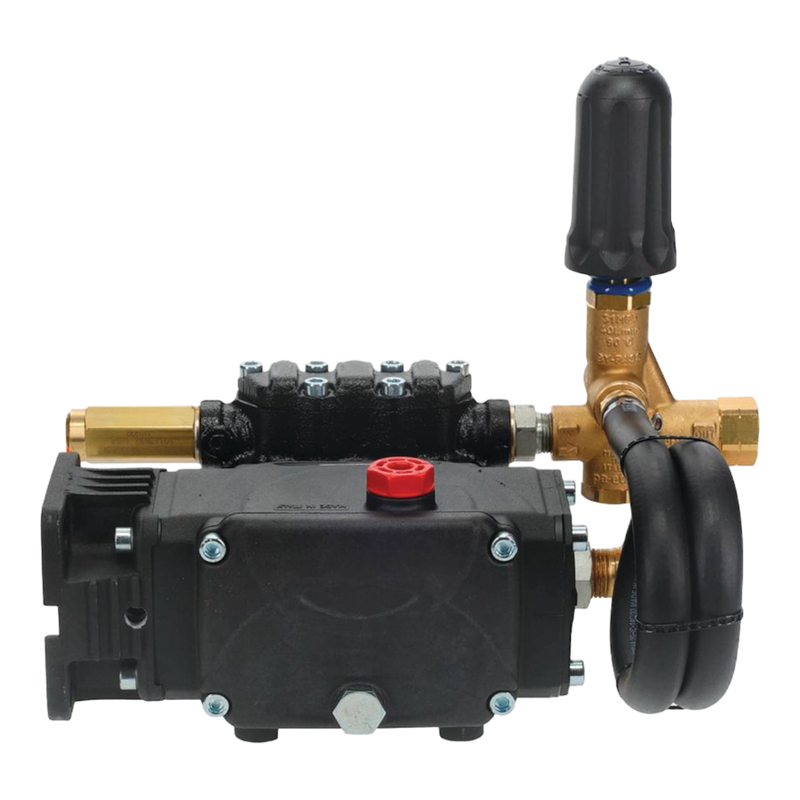

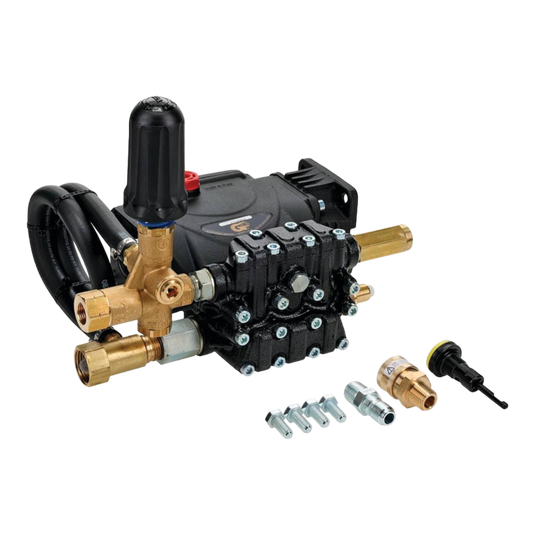

General Pump Pressure Washer Pump
General Pump PMRET1506G6
REPLACES OEM
General Pump TC1506GUI
SPECS
Crankcase oil capacity: 11.8 oz.
Flanged for direct couple to gasoline engines; 3/4" hollow shaft
Flooded pump dimensions: 10.4" x 8" x 7.7"
Gauge port: 1/8" maximum inlet required
Inlet port thread: 1/2"-14 BSP-F and Discharge port thread 3/8"-19 BSP-F
Maximum fluid temperature: 165 F
Maximum inlet pressure: 125 PSI
Premium built-in trapped pressure unloader on left side of manifold with an exclusive lifetime warranty
TC Series 60, Triplex plunger pump, SAE J609A
Bore Size: 0.591"
Gallons Per Minute: 2.600
HP: 7.210
Made By: An OEM Supplier
PSI: 2700
Type: Horizontal Gas Flanged
General Pump Pressure Washer Pump
General Pump PMRET1506G6
REPLACES OEM
General Pump TC1506GUI
SPECS
Crankcase oil capacity: 11.8 oz.
Flanged for direct couple to gasoline engines; 3/4" hollow shaft
Flooded pump dimensions: 10.4" x 8" x 7.7"
Gauge port: 1/8" maximum inlet required
Inlet port thread: 1/2"-14 BSP-F and Discharge port thread 3/8"-19 BSP-F
Maximum fluid temperature: 165 F
Maximum inlet pressure: 125 PSI
Premium built-in trapped pressure unloader on left side of manifold with an exclusive lifetime warranty
TC Series 60, Triplex plunger pump, SAE J609A
Bore Size: 0.591"
Gallons Per Minute: 2.600
HP: 7.210
Made By: An OEM Supplier
PSI: 2700
Type: Horizontal Gas Flanged
Compatibility Confirmation
Ensure a seamless fit and top-notch performance by taking an extra minute to cross-verify your part selection with your equipment manual and serial number. This crucial step helps avoid the inconvenience and cost of returns and exchanges. If you need assistance in this process, please do not hesitate to contact us. Our team will be more than happy to help you find the correct part.
