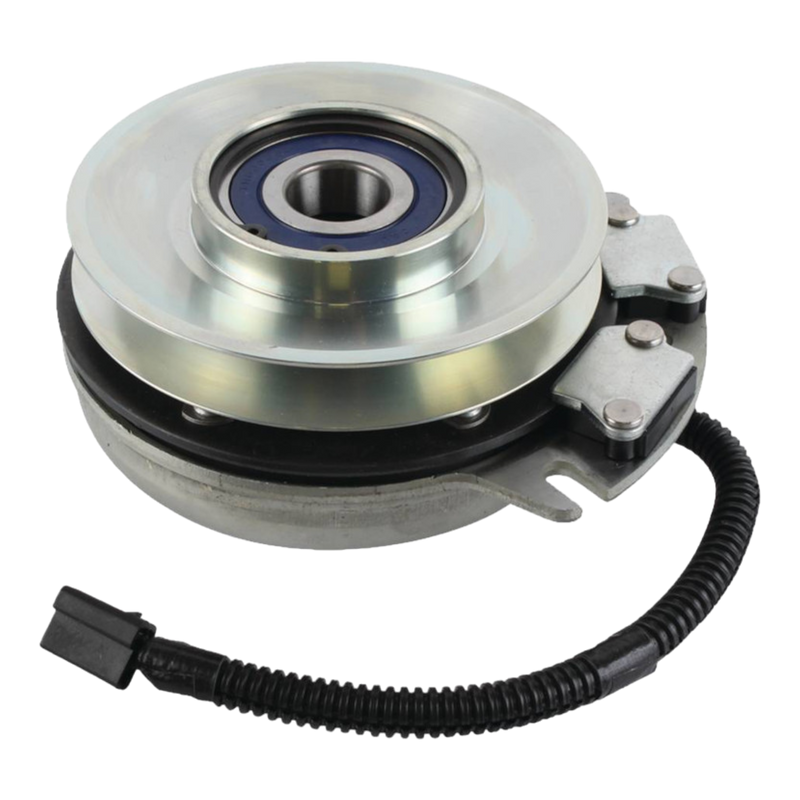

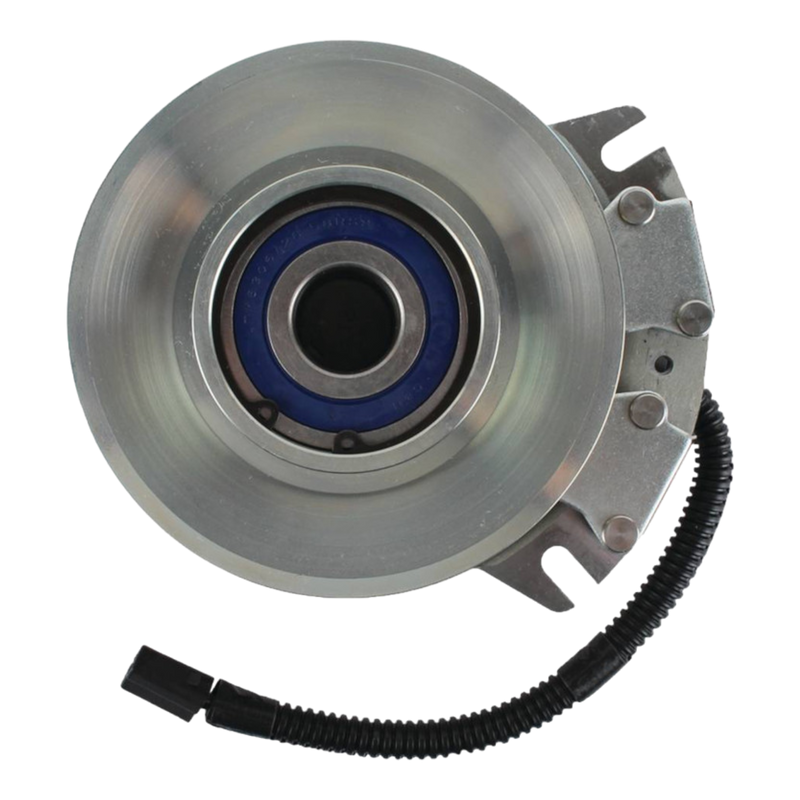

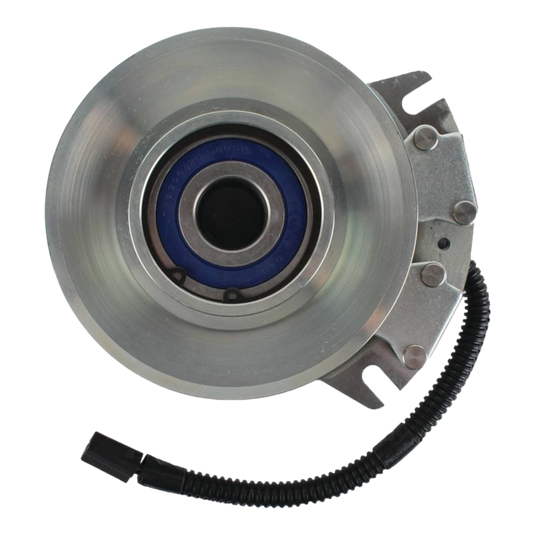

Cub Cadet PTO Clutch 917-04180 Replacement Stens X0016A
Xtreme PTO Clutch
Cub Cadet 917-04180
REPLACES OEM
Bolens 717-3403, 717-3403P, 917-3403
Bush Hog 50068674, 50068675
Craftsman 717-3403, 717-3403P, 917-3403
Cub Cadet 717-3403, 717-3403P, 917-04180, 917-3403
Encore 523025, 523370
Huskee 717-3403, 717-3403P, 917-3403
MTD 717-04180, 717-3403, 717-3403P, 917-04180, 917-3403
Rhino 50068675
Troy-Bilt 717-3403, 717-3403P, 917-04180, 917-3403
Warner 5218-17, 5218-284, 5218-285, 5218-302, 5218-6
FITS MODELS
Bush Hog EC and Estate Commercial series and PZ2661
Cub Cadet 1863, 1864, 2086, 2176, 2185, 2186, 2206, 2284, 2518, GT2186 and GT2523
Encore Prowler front cut with 52", 61" and 72" deck and Prowler mid cut with 52" and 61" deck
MTD 1863, 1864, 2086, 2176, 2185, 2186, 2206, 2284 and 2518
SPECS
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model specifications
For mower side wiring harness purchase XMC1003
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width: 1/2" or 5/8"
ID: 1 1/8"

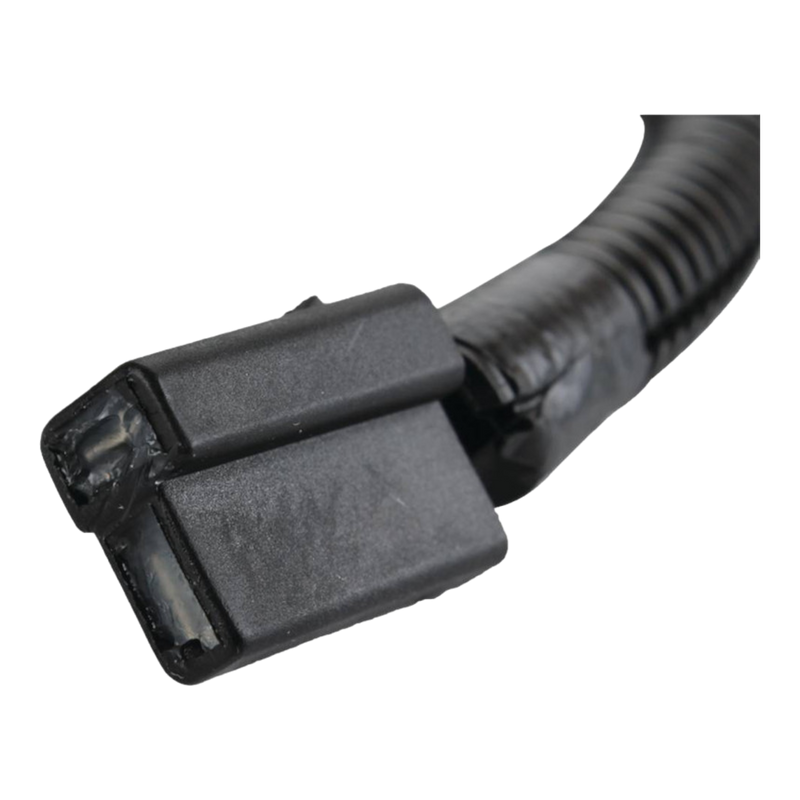

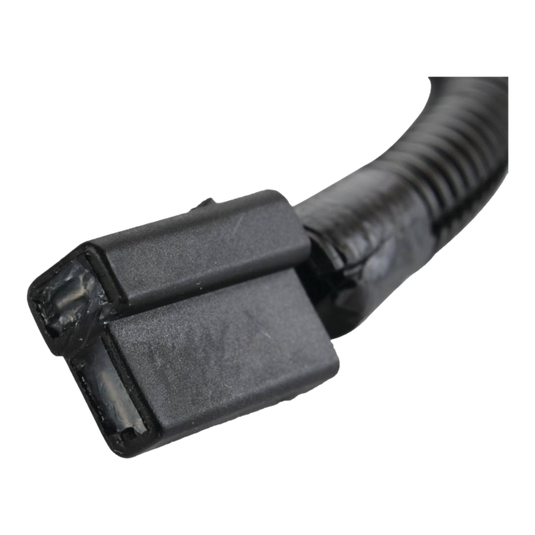

Includes: Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter: 6"
Rotation Direction: Counter Clockwise
Make Sure It Fits!
Double-check your equipment manual and model number to be sure this part is the right one. It only takes a minute and can save you the hassle of returns. Not sure? No problem! Reach out to us — we’re happy to help you find the right part.
